Cruiser High-Gain Signal Booster

SkyWave

Questions? 0908-4655440

Cruiser High-Gain Signal Booster Cruiser High-Gain Signal Booster Cruiser High-Gain Signal Booster

Cruiser High-Gain Signal Booster

Cruiser High-Gain Signal Booster

The Most Powerful Single Band Booster

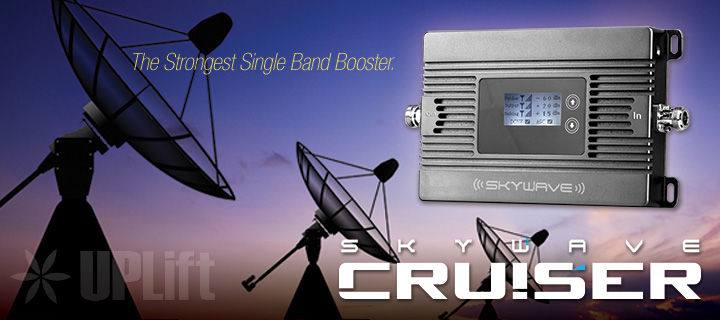

The SkyWave Cruiser Series is the most powerful industrial-class, single-band booster available for Philippine use.


Cruiser High-Gain Signal Booster

Highest Gain Single-Band Booster

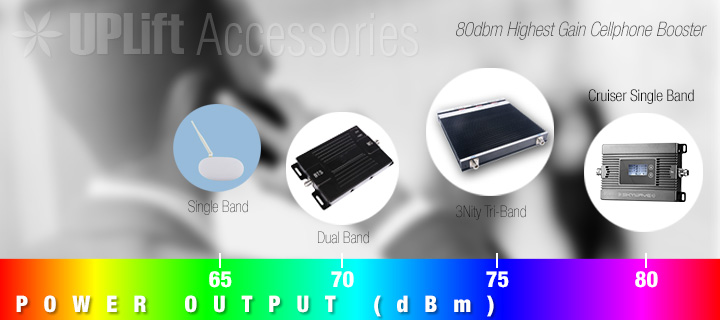

With minimum of 80dbm gain, there is no other booster that can rival the SkyWave Cruiser series.

Yes it is stronger than our Dual Band (65dbm) and 3Nity Tri-Band Booster (75dbm) in terms of signal gain.

Cruiser High-Gain Signal Booster

Available in 3 Variants

Cruiser High-Gain Signal Booster

Choose from 900 / 1800 / 2100 Mhz booster frequency depending on your application.

For Crititcal Remote Areas

Best used for key remote areas like construction sites, schools, hospitals, villas, hotels, dams, and others.

Cruiser High-Gain Signal Booster

Excellent Coverage

Cruiser High-Gain Signal Booster

The SkyWave Cruiser Single Band Booster Series can cover a wide area.

A single ceiling antenna can cover up to 500 sq. meters open space.

It can cover an effective area of up to 2,000 sq. meters with multiple ceiling antennnas.

Intelligent Design

Under the cute design stores an intelligently-designed booster board.

Built-in Automatic Gain Control (AGC) and Automatic Level Control (ALC) monitor input signal round-the-clock and automatically adjusts output power to avoid interference with the base station.

Cruiser High-Gain Signal Booster

Superior 4-Layer PCB Design

Cruiser High-Gain Signal Booster

Unlike other boosters, the Personal Cell Booster uses a 4-layer PCB design which allows for better heat disspation.

This makes it work more efficiently, so better long-term investment for you.


Cruiser High-Gain Signal Booster

Full Spectrum Booster

Our Internet Booster is a full spectrum booster that covers the full frequency band to offer you best performance.

Yes the photo looks geeky, but it shows the spectrum analysis of the signal gain for the full frequency band.

Cruiser High-Gain Signal Booster

Brushed Stainless Steel Body

Cruiser High-Gain Signal Booster

Fully encased in beautiful brushed stainless steel body for better heat dissipation and long service life.

Proper Setup

Setup properly to get good signal gain.

Outdoor antenna should point towards the base station without barriers in between.

Cruiser High-Gain Signal Booster

What's Inside the Box?

Components

The Personal Cell Booster contains:

• Internet Booster • Outdoor Yagi Antenna • Indoor Stick Antenna • 15m 3D-FB cable (50 ohms) • 220VAC Power Adapter • Manual

Gallery

Specifications

Cruiser High-Gain Single-Band Booster
Cruiser High-Gain Single-Band Booster
Cruiser High-Gain Single-Band Booster
Compatibility
Internet Booster
Internet Booster
Internet Booster
Frequency Range (Uplink/Downlink) 890~915 / 935~960 Mhz 1710~1785 / 1805~1880 Mhz 1920~1980 / 2110~2170 Mhz
Gain (Uplink) 80dB 80dB 80dB
Gain (Downlink) 85dB 85dB 85dB
Operating Current ≤1000ma ≤1000ma ≤1000ma
Automatic Gain Control (AGC) Range ≥30dB ≥30dB ≥30dB
Automatic Level Control (ALC) Range ≥30dB ≥30dB ≥30dB
Coverage 250+ m.2 250+ m.2 250+ m.2
Outdoor Antenna Connector N-Male N-Male N-Male
Indoor Antenna Class SkyWave Ceiling (Q7/27) SkyWave Ceiling (Q7/27) SkyWave Ceiling (Q7/27)
Indoor Antenna Frequency Range 790~2700 Mhz 790~2700 Mhz 790~2700 Mhz
Indoor Antenna Gain 3dbi 3dbi 3dbi
Indoor Antenna Connector N-Male N-Male N-Male
Indoor Antenna Rotation 360° 360° 360°
Antenna Cable Class LMR195 LMR195 LMR195
Antenna Cable Length 10 meters 10 meters 10 meters
Antenna Cable Impedance 50 ohms 50 ohms 50 ohms
Operating Temperature -25°C to +55°C -25°C to +55°C -25°C to +55°C
Content Booster Unit Only Booster Unit Only Booster Unit Only
Unit Price P 12,000.00 P 12,500.00 P 12,500.00

PAYMENT OPTIONS

Bank Deposit / Online Banking

Remittance Service

Online Payment

Payment Methods Payment Methods Payment methods
Payment methods Payment Methods Payment Methods
Payment Methods Payment Methods Payment Methods
Payment Methods
Buy Now!
