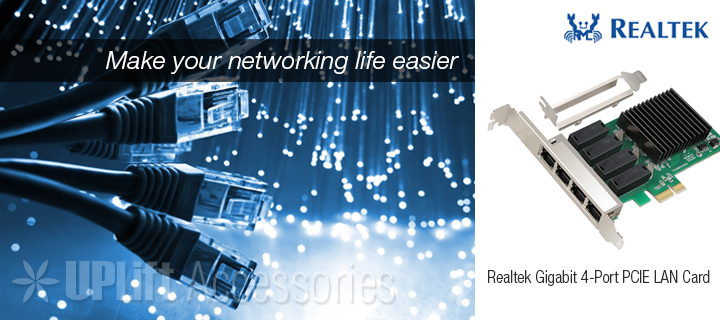

Realtek Gigabit Ethernet LAN Adapter 4-Port (PCI-E)

SkyWave

Questions? 0908-4655440

Realtek Gigabit Ethernet LAN Adapter 4-Port (PCI-E) Realtek Gigabit Ethernet LAN Adapter 4-Port (PCI-E) Realtek Gigabit Ethernet LAN Adapter 4-Port (PCI-E)
Quick Payment Options
Realtek Gigabit Ethernet LAN Adapter 4-Port (PCI-E)   P 3,600.00

Realtek Gigabit Ethernet LAN Adapter 4-Port (PCI-E)

Realtek Gigabit Ethernet LAN Adapter 4-Port (PCI-E)

Need extra LAN port for your PFSense or office intranet?

Our Gigabit LAN supports the latest PCI-E bus interface for high-speed communications.

Our dual port 1Gbps LAN adapter is based from Intel 82541 chipset to provide great video and gaming performance.

4-Port LAN

Get more work done with our 4-Port 10/100/1000Mbps LAN Card.

With PCI-E x1 interface for compatibility with more PCs.

4-Port LAN

PCI-Express Bus Interface

PCI-E Interface

Our easy-to-deploy 1Gbps Diskless LAN Card fits into your motherboard's x1 PCI-E slot for more compatibility.


PCI-Express Bus Interface

High-Speed 1Gbps LAN

High-speed 2x 1000Mbps gigabit LAN speeds for lag-free video and game experience.

1Gbps High-Speed LAN

Realtek LAN Chipset

Realtek LAN

The RTL8111H supports the PCI Express 1.1 bus interface for host communications with power management, and is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also supports an auxiliary power auto-detect function, and will auto-configure related bits of the PCI power management registers in PCI configuration space. The RTL8111H features embedded One-Time-Programmable (OTP) memory to replace the external EEPROM (93C46/93C56/93C66).

Gallery

Specifications

Model LAN-1GB4PxPCIE
Controller-Processor

Realtek RTL8111H x4

Bus Type

PCI-Express 1.1

Bus Width

4-lane PCI Express; operable in x1, x4, x8 and x16 slots

Connectors

4x RJ-45 (Copper)

IEEE Standard

IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T

Cabling

Category-3 or higher for 10BASE-T operation

Category-5 or higher for 100BASE-TX operation

Category-5e or higher for 1000BASE-T operation

Data Rate Per Port

10/100/1000 Mbps (Copper)

Full Duplex Flow Control Supported
Auto MDIX Supported
Receive Side Scaling (RSS) Supported
Wake-on-LAN / Remote Wake-up Supported
Serial EEPROM Supported
Interrupt levels MSI, MSI-X
Onboard Bootrom Not Supported
Operating Systems

Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server® 2012, 2008 R2, 2003(32/64)

Mac OS® 10.x (Intel based, tested up to 10.9)

Linux 2.4.x and later (Tested up to 3.5)

Warranty 6 Months
Unit Price P 3,600.00
