3Nity Tri-Band Signal Booster

3Nity Tri-Band Signal Booster

The Most Advanced Signal Booster

Get full cellphone and internet coverage from our SkyWave 3Nity Tri-Band Booster.

High signal gain covers the widest effective range for office or building use.

So don't panic! The SkyWave 3Nity Tri-Band Booster will save the day.

3Nity Tri-Band Signal Booster

Tri-Band Ready

As its name suggests, the SkyWave 3Nity covers everthing (wireless) thrown at you by all our local telcos Globe, Smart, PLDT and Sun:

  • GSM-900
  • GSM-1800
  • LTE-1800
  • HSPA-2100

Broadband Networks
3Nity Tri-Band Signal Booster

Superior Voice Quality

3Nity Tri-Band Signal Booster

Get quality voice reception for your home or business.

Compatible with old and new model smartphones and Iphones and our GSM Fixed Wireless Telephone.

Data Juggernaut

Our SkyWave 3Nity Tri-Band Booster is your internet juggernaut device.

It covers all 4G LTE internet bands from Smart and Globe (except 700Mhz bands).

It covers all 3G internet bands from Smart / Globe / Sun / PLDT.

Data has no choice but to..obey.


Broadband Networks
3Nity Tri-Band Signal Booster

Excellent Coverage

3Nity Tri-Band Signal Booster

The SkyWave 3Nity Tri-Band Booster covers the biggest area among all our boosters.

A single ceiling antenna can cover up to 500 sq. meters open space.

It can cover an effective area of up to 2,000 sq. meters with multiple ceiling antennas.

Suppports 300 Simultaneous Calls

So how many simultaneous cellphone users can the SkyWave 3Nity Tri-Band Booster support?

Yes it supports 300 simultaneous calls.

3Nity Tri-Band Signal Booster

Industrial-Class Signal Booster

3Nity Tri-Band Signal Booster

The SkyWave 3Nity Tri-Band Booster Series is our most advanced booster for Cellphone and internet applications.

Rugged powder-coated steel alloy casing protects the booster and allows for better heat dissipation.

Advanced PCB design for best quality and long service life.

Covers an area up to 500 square meters with a single ceiling antenna for big offices, factories, and warehouses.

Intelligent Design

Under the cute design stores an intelligently-designed booster board.

Built-in Automatic Gain Control (AGC) and Automatic Level Control (ALC) monitor input signal round-the-clock and automatically adjusts output power to avoid interference with the base station.

The AGC and ALC will gain control of the MLC (see below) when there is interference with the base station.

3Nity Tri-Band Signal Booster

Manual Level Control (MLC)

3Nity Tri-Band Signal Booster

Manual Level Control is an advanced feature of the SkyWave 3Nity Tri-Band Booster.

It allows you to control the signal strength of each band (uplink and downlink) for finer control in cases when you need to override the ALC.

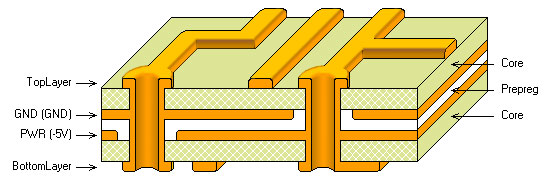

Superior 4-Layer PCB Design

Unlike other boosters, the Personal Cell Booster uses a 4-layer PCB design which allows for better heat disspation.

This makes it work more efficiently, so better long-term investment for you.


3Nity Tri-Band Signal Booster
3Nity Tri-Band Signal Booster

Full Spectrum Booster

3Nity Tri-Band Signal Booster

Our Internet Booster is a full spectrum booster that covers the full frequency band to offer you best performance.

Yes the photo looks geeky, but it shows the spectrum analysis of the signal gain for the full frequency band.

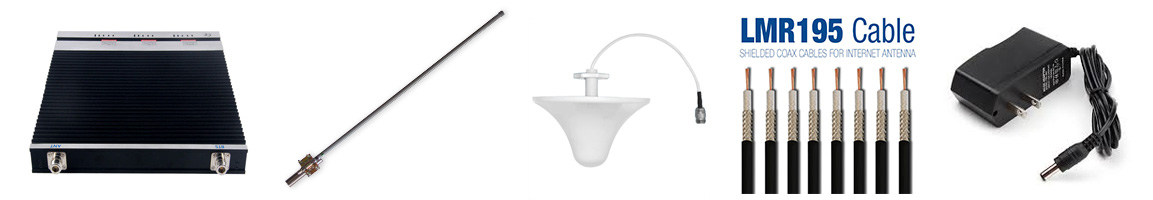

What's Inside the Box?

The SkyWave 3Nity Tri-Band Signal Booster contains:

Contents

• Tri-Band 900/1800/2100Mhz Booster • SkyWave Tri-Band Omni-Fibreglass AntennaSkyWave Ceiling Antenna (Q7/27) • 1x15m (Outdoor), 1x10m (Indoor) LMR195 Cables • 220VAC Power Adapter • Manual


FAQS

Can I replace the LPDA Antenna for Dual Band 900/1800 with Omni-Fiberglass 900/1800 Antenna?

Yes, just add P1,750.00 for upgrade to Omni-Fiberglass 900/1800 Antenna.

Can I replace the Yagi Antenna for Dual Band 1800/2100 with Zensei Series Parabolic Grid Antennas?

Yes, just add P2,500 for upgrade to Zensei Parabolic Grid Antenna (2000SPD6) or P3,500 for Zensei Ultra Parabolic Grid Antena (2000SPD9UT).

What is the maximum cable length that you advise for the outdoor and indoor antennas?

For the outdoor antenna we recommend a maximum of 30 meters.

For the indoor antenna we recommend a maximum of 15 meters.

Remember, less is more.

Gallery

Specifications

3Nity Tri-Band Signal Booster
Compatibility
Dual Band 900/1800
Frequency Range
Uplink Downlink
890~915 Mhz 935~960 Mhz
1710~1785 Mhz 1805~1880 Mhz
1920~1980 Mhz 2110~2170 Mhz
Max Gain
Uplink Downlink
≥ 70dB ≥ 75dB
Max Output Power
Uplink Downlink
≥ 24dB ≥ 27dB
MGC Step Attenuation ≥ 31dB (1db-Step)
Automatic Level Control (ALC) Range ≥ 20dB
Gain Flatness
GSM-900 / GSM-1800 Typical ≤ 6dB (P-P) / GSM-1800 ≤ 8dB (P-P)
HSPA ≤ 2dB/3.84MHz / Full Band ≤ 5dB (P-P)
Coverage 500 m2
Noise ≤ 5dB
VSWR ≤ 2dB
Group Delay ≤ 1.5ms
Frequency Stability ≤ 0.01ppm
Spurious Emission and Output Inter-modulation
GSM Meet ETSI TS 151 026 (v6.1.0)
HSPA Meet 3GPP TS 25.143 (v6.2.0)
Outdoor Antenna Class SkyWave Tri-Band Omni-Fiberglass Antenna
Outdoor Antenna Frequency Range 890~960 Mhz / 1790~2170 Mhz
Outdoor Antenna Gain
890~960 Mhz 9dbi
1790~2170 Mhz 12dbi
Outdoor Antenna Connector N-Female
Indoor Antenna Class SkyWave Ceiling (Q7/27)
Indoor Antenna Frequency Range 790~2700 Mhz
Indoor Antenna Gain 3dbi
Indoor Antenna Connector N-Female
Antenna Cable Class LMR195
Antenna Cable Length 1x15 meters (Outdoor), 1x10 meters (Indoor)
Antenna Cable Impedance 50 ohms
Operating Temperature -25°C to +55°C
Dimension 220 x 320 x 40 mm
Weight 3.5kg
Power Supply Input: 90V-264V / Output: 5V/6A
LED
Power Yes
Alarm Yes
Uplink On when call is ongoing
Downlink 1 On signal is ≤ -65dB
Downlink 1 On signal is ≤ -55dB
Downlink 1 On signal is ≤ -50dB
Unit Price P 24,500.00 (VAT-EX)
