Gemini MIMO Panel Antenna

SkyWave

Questions? 0908-4655440

Gemini MIMO Panel Antenna Gemini MIMO Panel Antenna Gemini MIMO Panel Antenna Gemini MIMO Panel Antenna Gemini MIMO Panel Antenna Gemini MIMO Panel Antenna Gemini MIMO Panel Antenna
Quick Payment Options
Gemini MIMO Panel Antenna   P 2,750.00

Gemini MIMO Panel Antenna

Gemini MIMO Panel Antenna

High Gain, Mid Range

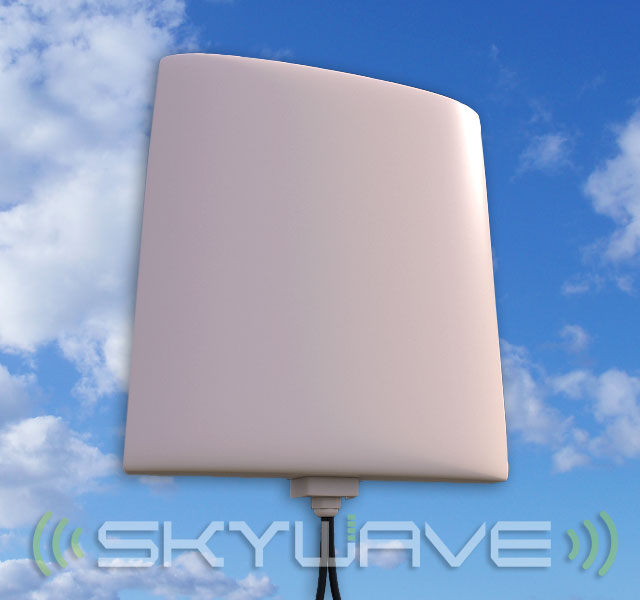

SkyWave Gemini MIMO Panel Antennas are high gain antennas with a maximum range of 4 kilometers. It is suitable for city use and for other high-density areas.

Wide frequency range 1800 ~ 2700 Mhz allows you to also use the Gemini as a Wimax antenna as well.

SkyWave Gemini MIMO Panel Antennas are very lightweight and easy to setup.

Gemini MIMO Panel Antenna

MIMO Ready

Takes Advantage of your 4G LTE MIMO Communications

SkyWave Gemini MIMO Panel Antennas are 2x2 MIMO ready to take advantage of your network's maximum LTE speeds of 42Mbps!

2 cables from the antenna are ready to connect to your 4G LTE modem devices' external antenna ports.

MIMO Ready

Compatible with all Wireless Internet

Compatible with all Wireless Internet

SkyWave Gemini MIMO Panel Antennas have a frequency range of 1800 ~ 2700 Mhz. You can use it with your 4G LTE , 3G/HSPA+, Wimax, and WiFi devices.

MIMO WiFi Extender

Extend Your WiFi Coverage

Yes the Gemini can also be used to extend your WiFi coverage.

If you have a MIMO capable 2.4Ghz WiFi router with 2 antenna ports, just connect the Gemini to exend your WiFi coverage. Some routers will need RPSMA converters.

MIMO WiFi Extender

World-Class Cables

World Class LMR240 Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

The Gemini MIMO Panel has an outer ABS Radome material for extra protection.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

Specifications

Gemini MIMO Panel Antenna
Model Number 2000GPD9x2
Antenna Type MIMO Panel (Dual Polarity)
Frequency Range 1790 ~ 2700 Mhz
Application 4G LTE / 3G / Wimax / WiFi
Gain 9 dbi
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 23
Max Power 50 watts
Polarization ±45° (MIMO)
Connector N-Female
Connector to Device SMA-Male
Dimension 250 x 250 mm
Weight 3.5 kg
Material Radome ABS
Directional True
Unit Price P 2,750.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P350.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P250.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
