Helix Helical Antenna

SkyWave

Questions? 0908-4655440

Helix Helical Antenna Helix Helical Antenna Helix Helical Antenna Helix Helical Antenna Helix Helical Antenna Helix Helical Antenna Helix Helical Antenna Helix Helical Antenna Helix Helical Antenna

Helix Helical Antenna

Helix Helical Antenna

Long Distance, Small Package

The SkyWave Helix helical antennas offer stable high signal gain with long distance over a small footprint.

SkyWave Helix Antenna

Improve Cellphone Reception

Getting dropped calls lately? Replace your GSM signal booster antenna with the SkyWave Helix Antenna (800HX14) to improve your cellphone reception.

Better Cellphone Reception

Compatible with Wifi Boosters

Compatible with Wifi Booster

Is your Wifi hotspot limited by your router?

Extend your hotspot using SkyWave Helix and our 2.4Ghz Wifi Booster.

Audio and Video Streaming over Wifi

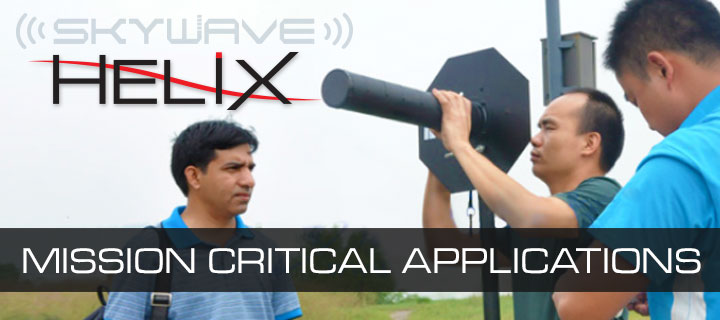

Connect your video surveillance equipment to an outdoor access point that is connected to our SkyWave Helix Antenna (2400HX14) to stream your mission critical audio and video feeds via 2.4Ghz over long distances.

Better Cellphone Reception

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, the SkyWave Helix is housed inside a Radome ABS enclosure for outdoor use.

Gallery

SkyWave Helix Helical Antennas SkyWave Helix Helical Antennas

Specifications

Helix Helical Antenna

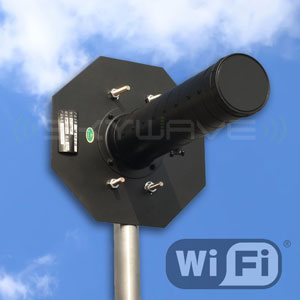

Model Number 2400HX14
Antenna Type Helical Antenna
Frequency Range 2400 ~ 2500 Mhz
Application Wifi
Gain 14 dbi
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 20
Max Power 100 watts
Polarization Helical
Connector N-Female
Connector to Device SMA-Male
Dimension 500 mm
Weight 1 kg
Material Radome ABS
Directional True
Unit Price P 3,250.00
Helix Helical Antenna

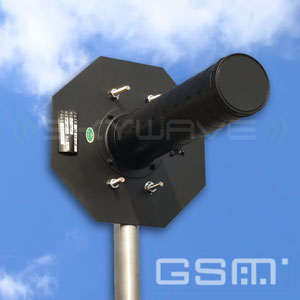

Model Number 800HX14
Antenna Type Helical Antenna
Frequency Range 806 ~ 960 Mhz
Application GSM
Gain 14 dbi
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 20
Max Power 100 watts
Polarization Helical
Connector N-Female
Connector to Device SMA-Male
Dimension 500 mm
Weight 0.5 kg
Material Radome ABS
Directional True
Unit Price P 3,450.00

Options

LMR240 Cable Upgrade Converter Delivery
15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P1,200.00 (1-2 Working Days)
20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P650.00 (2-4 Working Days)
30 Meters: P1,150.00 SMA to RPSMA-Male Converter (Pigtail): P300.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
