5Ghz MIMO Omnidirectional Antenna
Wide Coverage
SkyWave MIMO Omnidirectional Antenna is made for distribution of 5Ghz (5800HA13X) and 2.4Ghz (2400HA6X) Wifi systems.
High Speed MIMO Antenna
Get Speeds Up To 300Mbps
MIMO-ready antenna provides a maximum throughput of 300Mbps for your radio to keep your users happy.
Ready to Use
The SkyWave MIMO Omnidirectional Antenna is ready to use with 300Mbps access points from Ubiquity or Mikrotik.
Wide Coverage
360-degree horizontal coverage gives a broadcast advantage to users wherever they are.
World-Class Cables
All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.
LMR240 cables are shielded, high quality, low-loss cables made for data communications.
Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.
Don't compromise for anything less.
Made for the Outdoors
Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

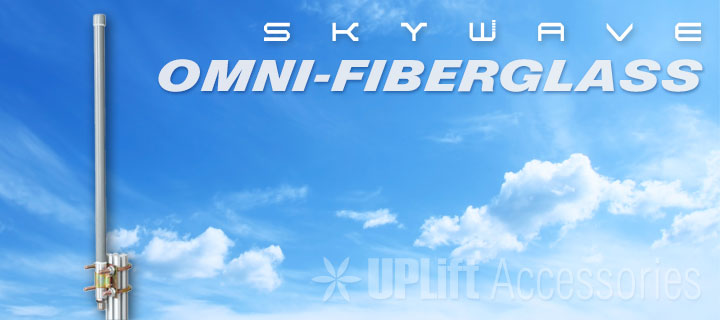

SkyWave Omni-Fiberglass as its name suggests is made from fiberglass that will withstand any weather.
Compatible with Your Device
All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.
External antenna ports supported are: TS9, SMA, and RPSMA-Female.
Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.
 |
 |
 |
| TS9 Connector | SMA Connector | RPSMA-Male Connector |
Freebies
Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.
Click on the photo to proceed to our facebook page (and like it!).
Gallery
Specifications

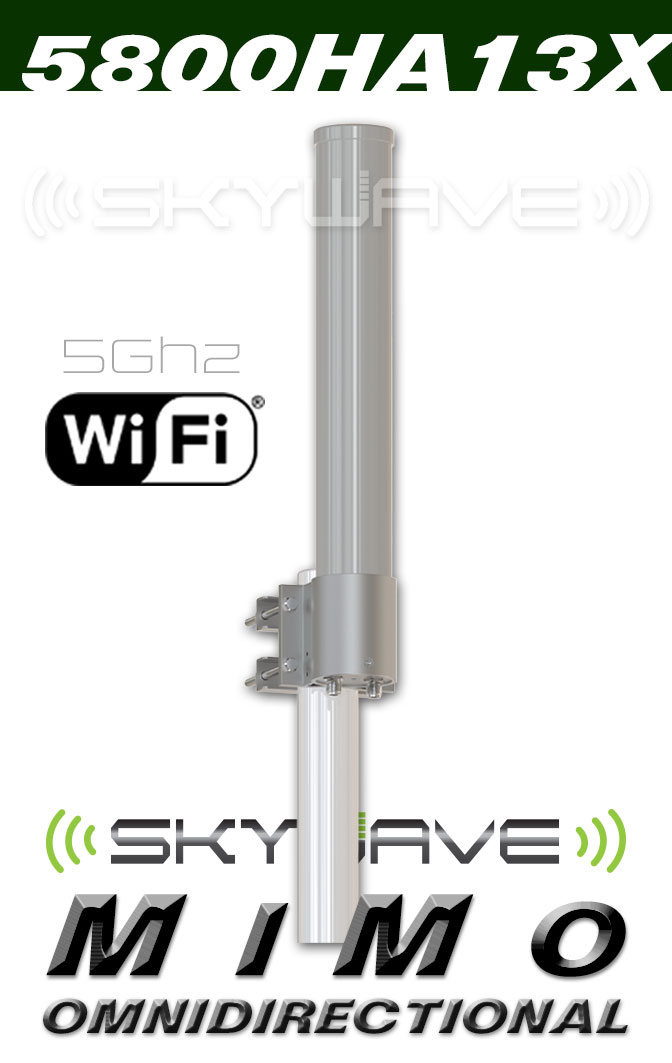

| Model Number | 5800HA13X |
| Antenna Type | Omnidirectional |
| Frequency Range | 5150 ~ 5850 Mhz |
| Application | 5Ghz Wifi |
| Gain | 13 dbi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 7° |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω |
| Max Power | 100 watts |
| Polarization | Horizontal/Vertical |
| Connector | 2x N-Female |
| Connector to Device | SMA-Male |
| Dimension | 600 mm |
| Weight | 1.7 kg |
| Material | Radome |
| Directional | False |
| Unit Price | P 9,250.00 |
|

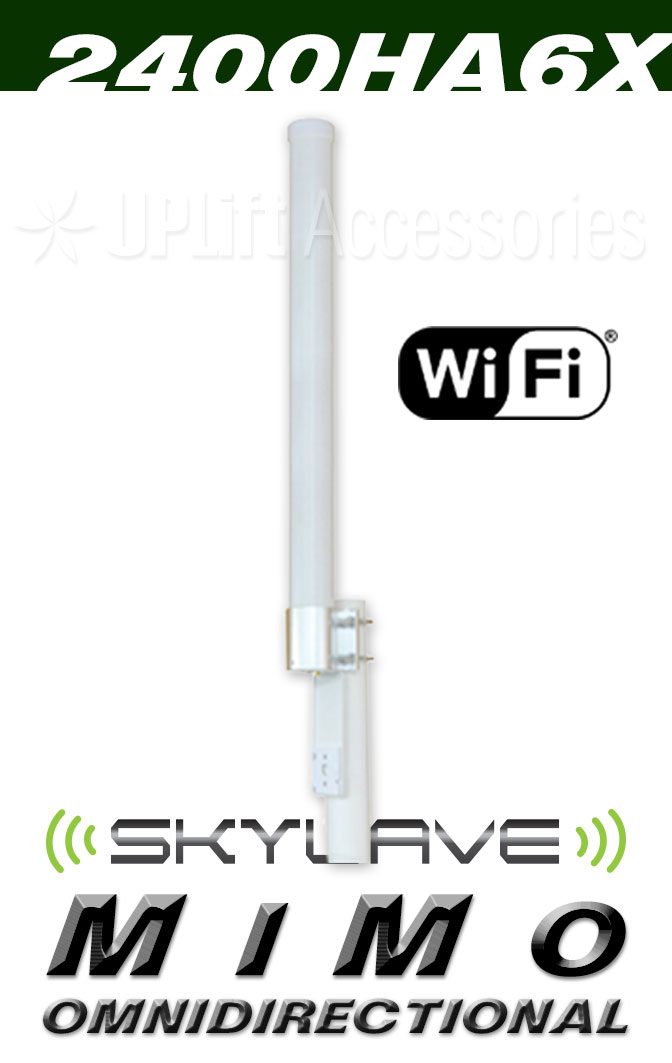

| Model Number | 2400HA6X |
| Antenna Type | Omnidirectional |
| Frequency Range | 2400 ~ 2483 Mhz |
| Application | 2.4Ghz Wifi |
| Gain | 6 dbi |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 21° |
| VSWR | < 1.5:1 |
| Impedance | 50 Ω |
| Max Power | 100 watts |
| Polarization | Horizontal/Vertical |
| Connector | 2x N-Female |
| Connector to Device | SMA-Male |
| Dimension | 540 mm |
| Weight | 1.65 kg |
| Material | Radome |
| Directional | False |
| Unit Price | P 4,950.00 |
|
