MIMO Omnidirectional Antenna for 4G LTE

SkyWave

Questions? 0908-4655440

MIMO Omnidirectional Antenna for 4G LTE MIMO Omnidirectional Antenna for 4G LTE MIMO Omnidirectional Antenna for 4G LTE MIMO Omnidirectional Antenna for 4G LTE MIMO Omnidirectional Antenna for 4G LTE MIMO Omnidirectional Antenna for 4G LTE MIMO Omnidirectional Antenna for 4G LTE
Quick Payment Options
MIMO Omnidirectional Antenna for 4G LTE   P 6,450.00

MIMO Omnidirectional Antenna for 4G LTE

MIMO Omnidirectional Antenna for 4G LTE

High-Gain Dual-Polarity Antenna

SkyWave MIMO Omnidirectional Antenna for 4G LTE with 2x12dbi gain is the highest-gain Omnidirectional Antenna available..

SkyWave MIMO Omnidirectional Antenna

Made for Moving Vehicles

Ready to Deploy

Omnidirectional antenna is a non-directional antenna that is best-suited for moving vehicles.

Setup on your cargo vessel, passenger bus, cruise ship, or private yacht to give you high-speed 4G LTE internet connection on the road or sea.

Made for Moving Vehicles

High Speed MIMO Antenna

High Speed MIMO Antnena

Get Full LTE Speeds

Ready-to-Use dual-polarity antennas provide the highest LTE speeds compared to single-polarity antenna.

With 1.2 meters in length and 12 centimeters in diameter the 2000HA12X is one of our biggest antenna with 2x12dbi gain.

Wide Coverage

360-degree horizontal coverage gives access to base stations from any direction.

Wide Coverage

World-Class Cables

World Class LMR240 Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

SkyWave Omni-Fiberglass as its name suggests is made from fiberglass that will withstand any weather.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

Specifications

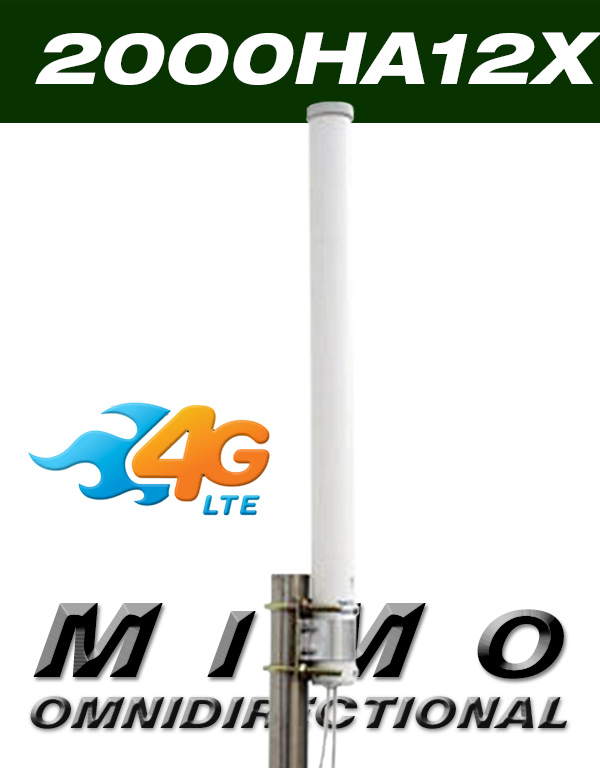

MIMO Omnidirectional Antenna for 4G LTE
Model Number 2000HA12X
Antenna Type Omnidirectional
Frequency Range 1790 ~ 2170 Mhz
Application 4G LTE / 3G
Gain 12 dbi
Horizontal Beamwidth 360°
Vertical Beamwidth
VSWR < 1.5:1
Impedance 50 Ω
Max Power 100 watts
Polarization Horizontal/Vertical
Connector 2x N-Female
Connector to Device SMA-Male
Dimension 1150 mm
Weight 3 kg
Material Radome
Directional False
Unit Price P 6,450.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P655.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P625.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00 AP Cargo: Collect
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
