Dual Band Omni-Fiberglass Antenna

SkyWave

Questions? 0908-4655440

Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna Dual Band Omni-Fiberglass Antenna
Quick Payment Options
Dual Band Omni-Fiberglass Antenna   P 3,350.00

Dual Band Omni-Fiberglass Antenna

Dual Band Omni-Fiberglass Antenna

Wide Coverage

SkyWave Omni-Fiberglass is a true 7dbi gain outdoor omnidirectional antenna for use with GSM-900 and GSM-1800 / LTE-1800 applications.

SkyWave Dual Band Omni-Fiberglass Antenna

Made for Dual Band 900/1800 Boosters

Outdoor Antenna for Dual Band Booster

The SkyWave Dual Band Omni-Fiberglass is made for dual band boosters like the SkyWave Dual-900/1800 Booster.

Made for Dual Band 900/1800 Boosters

Made Tough

Made Tough

Durable fiberglass material ensures your antenna withstands all types of weather - rain or shine.

Wide Coverage

360-degree horizontal coverage gives access to base stations from any direction.

Perfect antenna if you are deploying a signal booster for all networks (Smart / Globe / Sun) where the base stations are in different locations.

Wide Coverage

World-Class Cables

World Class LMR240 Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

SkyWave Omni-Fiberglass as its name suggests is made from fiberglass that will withstand any weather.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

Specifications

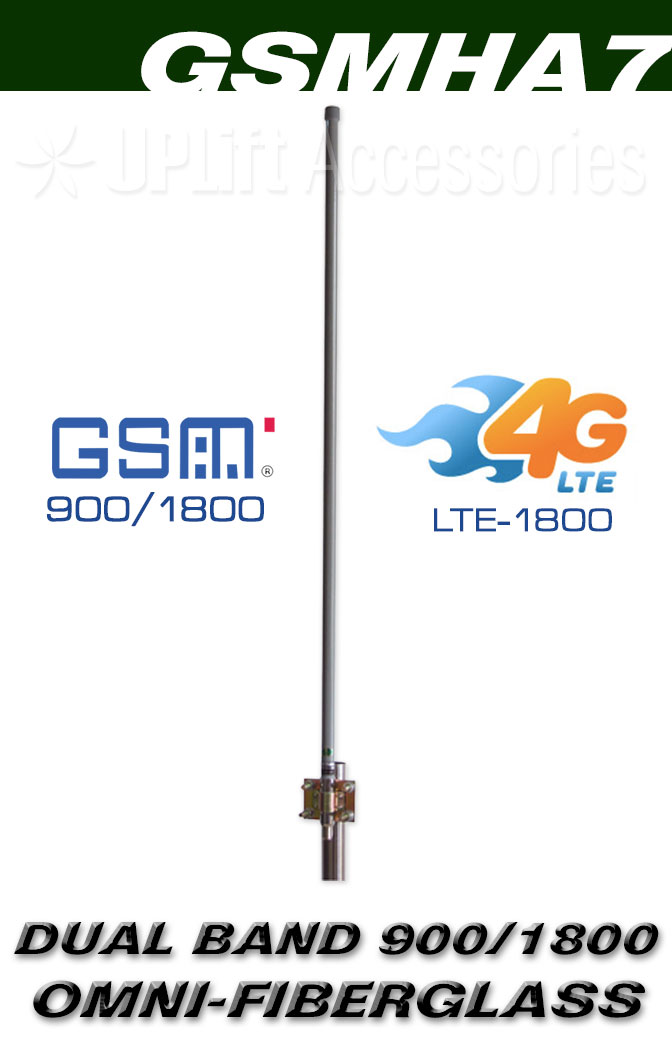

Dual Band Omni-Fiberglass Antenna
Model Number GSMHA7
Antenna Type Omnidirectional
Frequency Range 890~960 / 1790~1880 Mhz
Application GSM-900/1800
Gain 7 dbi
Horizontal Beamwidth 360°
Vertical Beamwidth 10°
VSWR < 1.5:1
Impedance 50 Ω
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device N-Male
Dimension 1200 mm
Weight 1 kg
Material Radome Fiberglass
Directional False
Unit Price P 3,350.00
Dual Band Omni-Fiberglass Antenna
Model Number 2458HA12
Antenna Type Omnidirectional
Frequency Range 2300~2700 / 5000~5800 Mhz
Application Wifi
Gain 12 dbi
Horizontal Beamwidth 360°
Vertical Beamwidth 10°
VSWR < 1.5:1
Impedance 50 Ω
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device N-Male
Dimension 840 mm
Weight 1 kg
Material Radome Fiberglass
Directional False
Unit Price P 4,250.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P425.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P350.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00 AP Cargo: Collect
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
