Omni-Fiberglass Antenna

SkyWave

Questions? 0908-4655440

Omni-Fiberglass Antenna Omni-Fiberglass Antenna Omni-Fiberglass Antenna Omni-Fiberglass Antenna Omni-Fiberglass Antenna Omni-Fiberglass Antenna Omni-Fiberglass Antenna Omni-Fiberglass Antenna Omni-Fiberglass Antenna

Omni-Fiberglass Antenna

Omni-Fiberglass Antenna

High Gain, Wide Coverage

SkyWave Omni-Fiberglass is a high-gain omnidirectional antenna available for 4G LTE / 3G, Wifi, and now GSM-900.

SkyWave Omni-Fiberglass Antennas

Made Tough

Durable fiberglass material ensures your antenna withstands all types of weather - rain or shine.

Made Tough

Wide Coverage

Wide Coverage

360-degree horizontal coverage gives access to base stations from any direction.

WiFi Extender

Extend Your WiFi Coverage

SkyWave Omni-Fiberglass Antenna (2300HA10) are made to extend your WIFI coverage in a 360-degree radius.

This 1-meter long antenna can extend your WIFI coverage up to 600 meters when paired with a WIFI booster or outdoor access point.

Some routers will need our 2.4Ghz Wifi Booster to provide sufficient power to the antenna.

MIMO WiFi Extender

Compatible with Wifi Boosters

Compatible with Wifi Booster

Is your Wifi hotspot limited by your router?

Extend your hotspot using SkyWave Omni-Fiberglass Antenna (2300HA10) and our 2.4Ghz Wifi Booster.

Compatible with Outdoor Access Points

Pair the 2300HA10 with your favorite 2.4Ghz outdoor AP from Microtik or Ubiquiti.

Compatible with Outdoor AP

Compatible with Cellphone Boosters

Compatible with GSM-900 Cellphone Booster

You can use the Omni-Fiberglass Antenna (GSMHA6) as the outdoor antenna with our SkyWave GSM-900 Cellphone Booster.

World-Class Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

World Class LMR240 Cables

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

SkyWave Omni-Fiberglass as its name suggests is made from fiberglass that will withstand any weather.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

Specifications

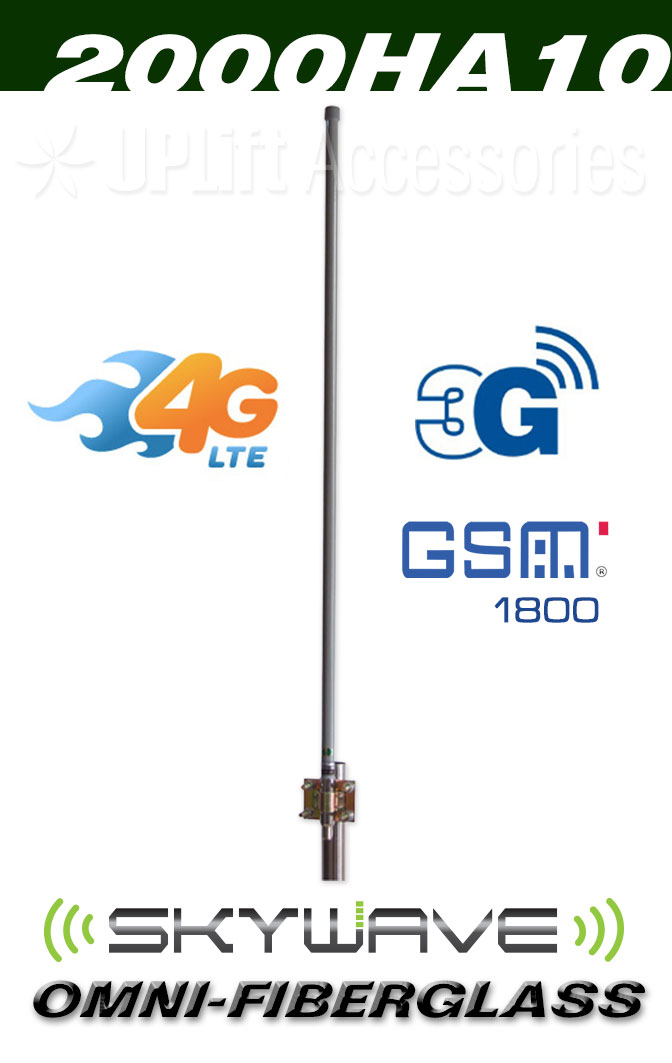

Omni-Fiberglass Antenna
Model Number 2000HA10
Antenna Type Omnidirectional
Frequency Range 1790 ~ 2170 Mhz
Application 4G LTE / 3G / GSM 1800
Gain 10 dbi
Horizontal Beamwidth 360°
Vertical Beamwidth 10°
VSWR < 1.5:1
Impedance 50 Ω
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 1200 mm
Weight 1 kg
Material Radome Fiberglass
Directional False
Unit Price P 2,750.00

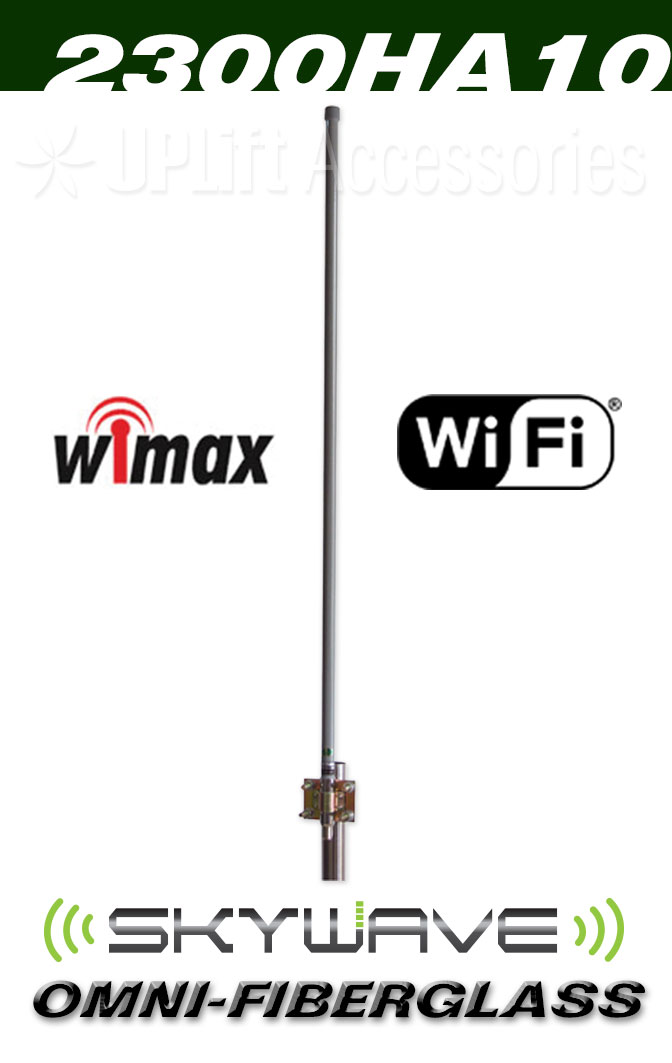

Omni-Fiberglass Antenna
Model Number 2300HA10
Antenna Type Omnidirectional
Frequency Range 2300 ~ 2700 Mhz
Application Wifi / Wimax
Gain 10 dbi
Horizontal Beamwidth 360°
Vertical Beamwidth 10°
VSWR < 1.5:1
Impedance 50 Ω
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 1200 mm
Weight 1 kg
Material Radome Fiberglass
Directional False
Unit Price P 2,750.00

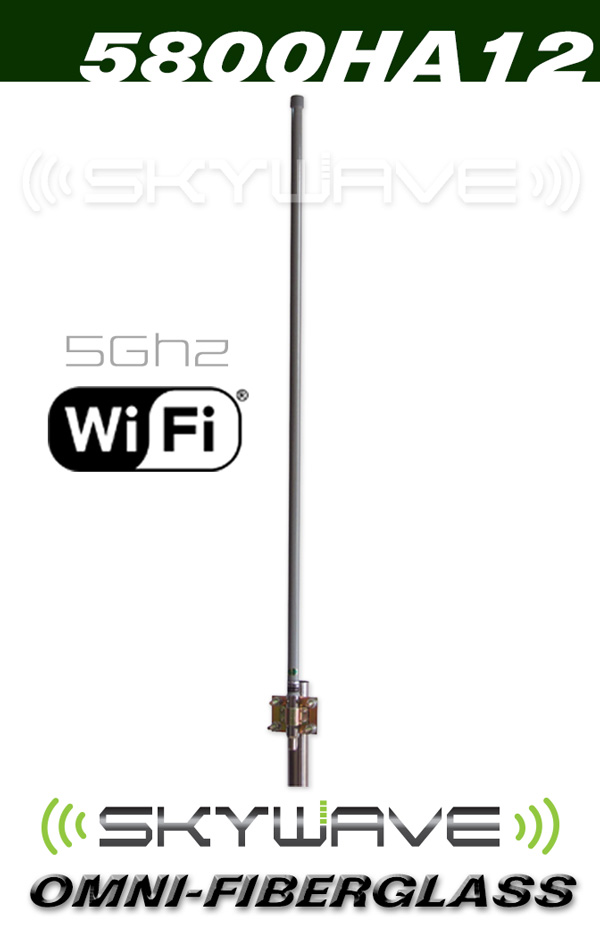

Omni-Fiberglass 5G Antenna
Model Number 5800HA12
Antenna Type Omnidirectional
Frequency Range 5725 ~ 5850 Mhz
Application 5Ghz Wifi
Gain 12 dbi
Horizontal Beamwidth 360°
Vertical Beamwidth
VSWR < 1.5:1
Impedance 50 Ω
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 660 mm
Weight 0.75 kg
Material Radome Fiberglass
Directional False
Unit Price P 3,250.00

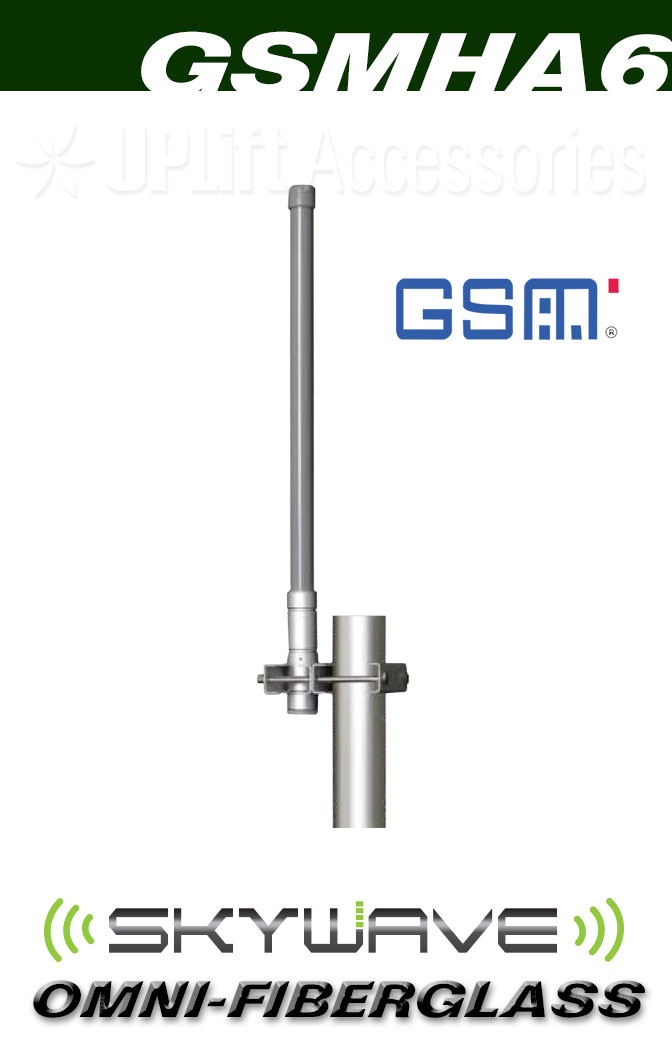

Omni-Fiberglass Antenna for Cellphone
Model Number GSMHA6
Antenna Type Omnidirectional
Frequency Range 890 ~ 960 Mhz
Application GSM-900
Gain 6 dbi
Horizontal Beamwidth 360°
Vertical Beamwidth 21°
VSWR < 1.5:1
Impedance 50 Ω
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 450 mm
Weight 0.53 kg
Material Radome Fiberglass
Directional False
Unit Price P 2,450.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P425.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P350.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00 AP Cargo: Collect
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
