Saber Yagi Antenna for Ultera

SkyWave

Questions? 0908-4655440

Saber Yagi Antenna for Ultera Saber Yagi Antenna for Ultera Saber Yagi Antenna for Ultera Saber Yagi Antenna for Ultera Saber Yagi Antenna for Ultera Saber Yagi Antenna for Ultera Saber Yagi Antenna for Ultera Saber Yagi Antenna for Ultera
Quick Payment Options
Saber Yagi Antenna for Ultera   P 2,495.00

Saber Yagi Antenna for Ultera

SkyWave Zensei Parabolic Grid Antennas

High Gain

SkyWave Saber Yagi Antenna for Ultera takes your LTE internet in places it has never been.

With max range of 8kms, give your Ultera CPE extra mileage with high LTE TDD speeds.

SkyWave Saber Yagi Antenna for Ultera

Made for PLDT Ultera LTE

Rejoice PLDT Ultera users, we just solved your internet connection problem.

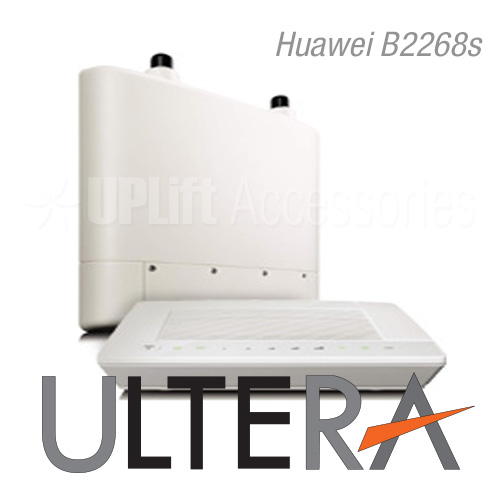

The SkyWave Saber DB3500 is made for PLDT Ultera LTE TDD-3500 CPE with external antenna ports like the Huawei B2268S and GreenPacket OD-350.

Made for PLDT Ultera LTE

Conquer Distance

Conquer Distance

Conquer distance with the Skywave Saber Yagi Antennas.

SkyWave Saber Yagi Antennas have a maximum range of 8 kilometers (with clear line of sight). No more second guessing, no more worries on your internet connection.

Radome Protection

With weatherproof ABS radome covering for protection, the SkyWave Saber will give you extra long service life.

Radome Protection

MIMO Configuration

MIMO Configuration

In order to setup the SkyWave Saber in MIMO configuration, the horizontal polarity requires a horizontal crossbar.

With the help of a scaffolding clamp, this is easy to achieve.

World-Class Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

World Class LMR240 Cables

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

FAQS

Do I need to purchase 2 sets SkyWave Saber Yagi Antenna for PLDT Ultera?

Yes you will need to achieve stable internet connection. If only one antenna setup your speeds will fluctuate from high to low. If 2 antennas this fluctuation will be avoided.

Do I need to purchase extra cable converters for my PLDT Ultera modem?

Yes you will need the ff cable converter:

Huawei B2268S: SMA-F to N-M Converter (P300.00)

GreenPacket OD350: SMA-F to RPSMA-M Converter (P250.00)

Do you have cables with direct connectors so we do not have to purchase the converters?

Yes you can use our cables below instead of choosing the default 10m cable:

Huawei B2268S: 2m LMR195 or 5m LMR195 cables (N-M/N-M)

GreenPacket OD350: 2m LMR195 or 5m LMR195 cables (N-M/RPSMA-M)

Can I use the Saber with Smart or Globe LTE?

Please note that SkyWave Saber Yagi Antenna has different frequency range of 3400~3500Mhz. It is not compatible with Smart or Globe LTE base frequency.

If I upgrade the default cable to 20m, do I get 10m and 20m cables?

No. Upgrade means we will replace the default 10m cable with the cable of your choice. You will only receive 1 cable.

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

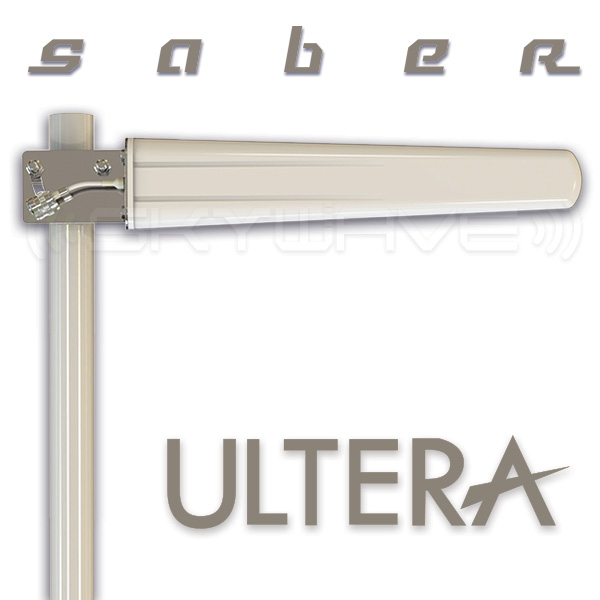

Specifications

Saber Yagi Antenna for Ultera
Model Number DB3500
Antenna Type Yagi
Frequency Range 3400 ~ 3700 Mhz
Application 4G LTE TDD-3500 (Ultera)
Gain 15 dbi
Horizontal Beamwidth 30°
Vertical Beamwidth 27°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 420 mm
Weight 0.4 kg
Material Aluminum Alloy / Weatherproof ABS
Directional True
Unit Price P 2,495.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P350.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P250.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
