Stratos Wifi MIMO Sector Antenna

SkyWave

Questions? 0908-4655440

Stratos Wifi MIMO Sector Antenna Stratos Wifi MIMO Sector Antenna Stratos Wifi MIMO Sector Antenna

Stratos Wifi MIMO Sector Antenna

Stratos Wifi MIMO Sector Antenna

Full Wifi Coverage

The SkyWave Stratos Series are base-station class 2x2 MIMO sector antennas made to cover a large area with clear Wifi signal.

Wifi signal booster like UBNT Bullet/Rocket or Microtik BaseBox/Groove access points or base stations are required.

Use the Stratos if you are planning to setup a wifi hotspot for large areas.


SkyWave Strators Extrene Wifi Antennas

Base Station Class Antenna

The SkyWave Stratos Sector Antenna is a base station class antenna.

A combination of effective range and durability guarantees return for your investment.

MIMO Ready

Multi-User Environment

Multi-User Environment

Made for multi-user environment indoor or outdoor.

Fast 300Mbps Speeds

SkyWave Stratos MIMO Sector Antennas are 2x2 MIMO antennnas providing a maximum throughput of 300Mbps.

Super Wide Coverage

Wide Coverage

Super Wide Coverage

Skywave Stratos MIMO Sector Antennas cover up to 120-degree area with a high signal sensitivity.

Use with Base Station

Pair the SkyWave Stratos Sector Antenna with base station access points from UBNT or Microtik.

Super Wide Coverage

Adjustable Angle Mounts

Adjustable Angle Mounts

Adjust the coverage of the SkyWave Stratos with adjustable angle brackets.

Angles are adjustable from 0 ~ 15°.

World-Class Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

World Class LMR240 Cables

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, the SkyWave Stratos MIMO Sector Antenna is housed inside a Radome UV-Resistant PVC enclosure for outdoor use.

Gallery

Specifications

Stratos Wifi MIMO Sector Antenna
Model Number 5800H120ST16X
Antenna Type 5Ghz Wifi MIMO Sector Antenna
Frequency Range 5150 ~ 5850 Mhz
Application WiFi
Gain 16 dbi
Horizontal Beamwidth 120°
Vertical Beamwidth
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 20
Max Power 100 watts
Polarization Horizontal and Vertical
Connector 2x N-Female
Connector to Device SMA-Male
Dimension 410 x 115 x 55 mm
Weight 1.35 kg
Material Radome UV-Resistant PVC
Directional True
Unit Price P 8,350.00

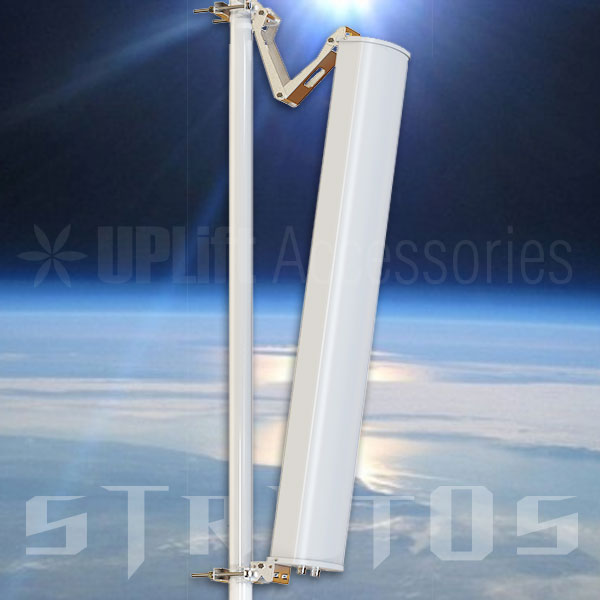

Stratos Wifi MIMO Sector Antenna
Model Number 2400V120ST16X
Antenna Type 2.4Ghz Wifi MIMO Sector Antenna
Frequency Range 2400 ~ 2486 Mhz
Application WiFi
Gain 16 dbi
Horizontal Beamwidth 120°
Vertical Beamwidth
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 20
Max Power 100 watts
Polarization ±45°
Connector 2x N-Female
Connector to Device SMA-Male
Dimension 1126 x 180 x 90 mm
Weight 4.5 kg
Material Radome UV-Resistant PVC
Directional True
Unit Price P 8,500.00

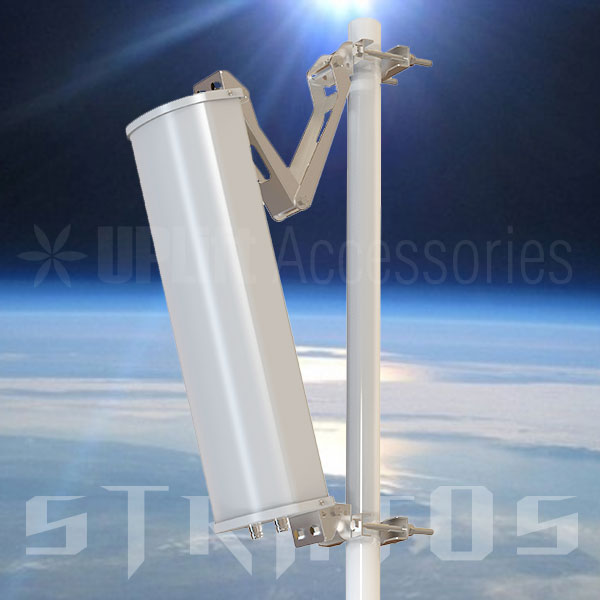

Stratos Wifi MIMO Sector Antenna
Model Number 2400V120ST13X
Antenna Type 2.4Ghz Wifi MIMO Sector Antenna
Frequency Range 2400 ~ 2486 Mhz
Application WiFi
Gain 13 dbi
Horizontal Beamwidth 120°
Vertical Beamwidth 18°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 20
Max Power 100 watts
Polarization ±45°
Connector 2x N-Female
Connector to Device SMA-Male
Dimension 546 x 180 x 90 mm
Weight 2.5 kg
Material Radome UV-Resistant PVC
Directional True
Unit Price P 6,500.00

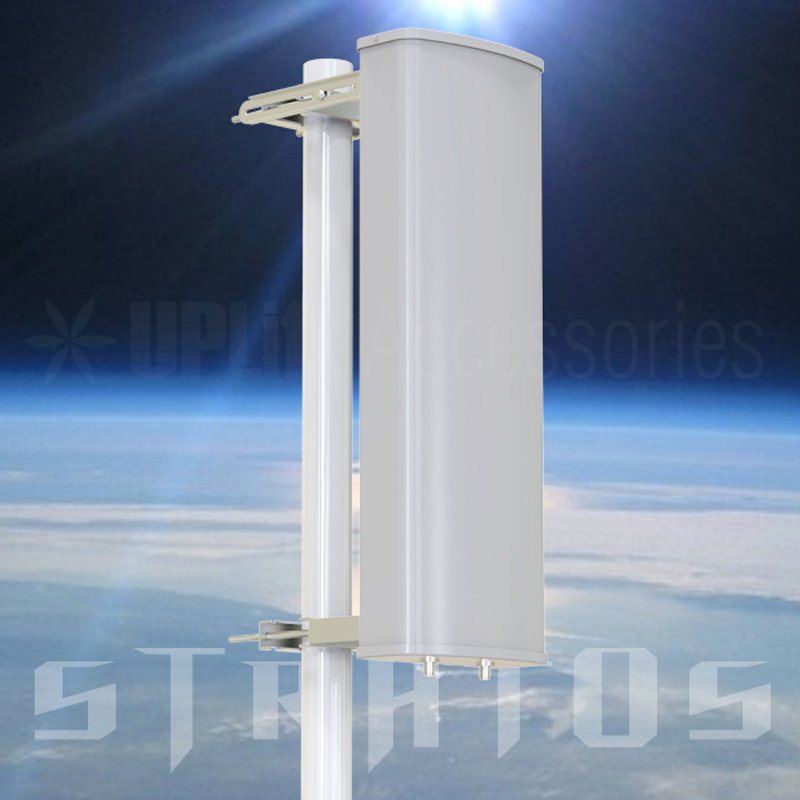

Stratos Wifi MIMO Sector Antenna
Model Number 900H90ST13X
Antenna Type 900Mhz Wifi MIMO Sector Antenna
Frequency Range 900 ~ 930 Mhz
Application WiFi
Gain 13 dbi
Horizontal Beamwidth 90°
Vertical Beamwidth 23°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 30
Max Power 100 watts
Polarization ±45°
Connector 2x N-Female
Connector to Device N-Male
Dimension 880 x 288 x 133 mm
Weight 8.2 kg
Material Radome UV-Resistant PVC
Directional True
Unit Price P 8,750.00

Options

LMR240 Cable Upgrade Converter Delivery
15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P1,200.00 (1-2 Working Days)
20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P650.00 (2-4 Working Days)
30 Meters: P1,150.00 SMA to RPSMA-Male Converter (Pigtail): P300.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
