Stratos Wifi Sector Antenna

SkyWave

Questions? 0908-4655440

Stratos Wifi Sector Antenna Stratos Wifi Sector Antenna Stratos Wifi Sector Antenna

Stratos Wifi Sector Antenna

Stratos Wifi Sector Antenna

Full Wifi Coverage

The SkyWave Stratos Series are base-station class sector antennas made to cover a large area with clear Wifi signal.

Wifi signal booster like UBNT Bullet/Rocket or Microtik BaseBox/Groove access points or base stations are required.

Use the Stratos if you are planning to setup a wifi hotspot for large areas.


SkyWave Strators Extrene Wifi Antennas

Base Station Class Antenna

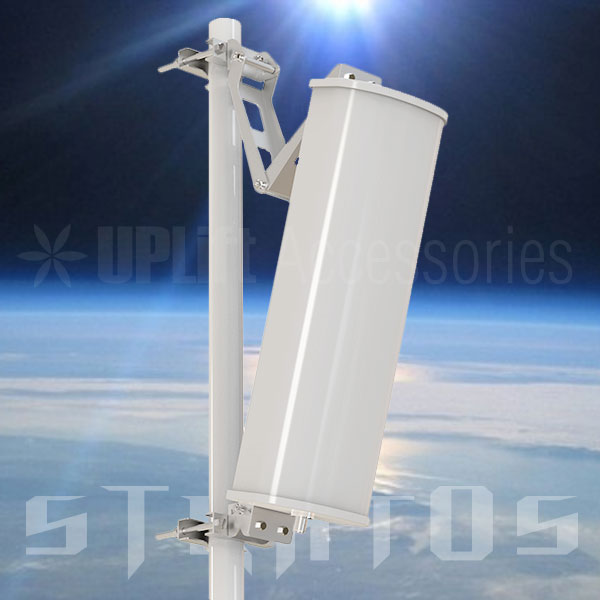

The SkyWave Stratos Sector Antenna is a base station class antenna.

A combination of effective range and durability guarantees return for your investment.

MIMO Ready

Multi-User Environment

Multi-User Environment

Made for multi-user environment indoor or outdoor.

Extended Wide Coverage

SkyWave Stratos Sector Antenna (2400V180ST12) is the only wifi sector antenna with unparalleled 180-degree coverage with no signal degradation.

Super Wide Coverage

Wide Coverage

Super Wide Coverage

Skywave Stratos Sector Antenna (2400V120ST13) can cover up to 120-degree area with a high 13dbi sensitivity.

Use with Base Station

Pair the SkyWave Stratos Sector Antenna with base station access points from UBNT or Microtik.

Super Wide Coverage

Adjustable Angle Mounts

Adjustable Angle Mounts

Adjust the coverage of the SkyWave Stratos with adjustable angle brackets.

Angles are adjustable from 0 ~ 15°.

World-Class Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

World Class LMR240 Cables

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, the SkyWave Stratos Sector Antenna is housed inside a Radome UV-Resistant PVC enclosure for outdoor use.

Gallery

Specifications

Stratos Wifi Sector Antenna
Model Number 2400V180ST12
Antenna Type Wifi Sector Antenna
Frequency Range 2400 ~ 2486 Mhz
Application WiFi
Gain 12 dbi
Horizontal Beamwidth 180°
Vertical Beamwidth 12°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 20
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 580 x 164 x 65 mm
Weight 3 kg
Material Radome UV-Resistant PVC
Directional True
Unit Price P 4,750.00
Stratos Wifi Sector Antenna
Model Number 2400V120ST13
Antenna Type Wifi Sector Antenna
Frequency Range 2400 ~ 2486 Mhz
Application WiFi
Gain 13 dbi
Horizontal Beamwidth 120°
Vertical Beamwidth 13°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 20
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 580 x 164 x 65 mm
Weight 3.5 kg
Material Radome UV-Resistant PVC
Directional True
Unit Price P 4,250.00

Options

LMR240 Cable Upgrade Converter Delivery
15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P1,200.00 (1-2 Working Days)
20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P650.00 (2-4 Working Days)
30 Meters: P1,150.00 SMA to RPSMA-Male Converter (Pigtail): P300.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
