Zensei 5G Parabolic Grid Antenna

SkyWave

Questions? 0908-4655440

Zensei 5G Parabolic Grid Antenna Zensei 5G Parabolic Grid Antenna Zensei 5G Parabolic Grid Antenna Zensei 5G Parabolic Grid Antenna Zensei 5G Parabolic Grid Antenna Zensei 5G Parabolic Grid Antenna Zensei 5G Parabolic Grid Antenna Zensei 5G Parabolic Grid Antenna

Zensei 5G Parabolic Grid Antenna

Zensei 5G Parabolic Grid Antenna

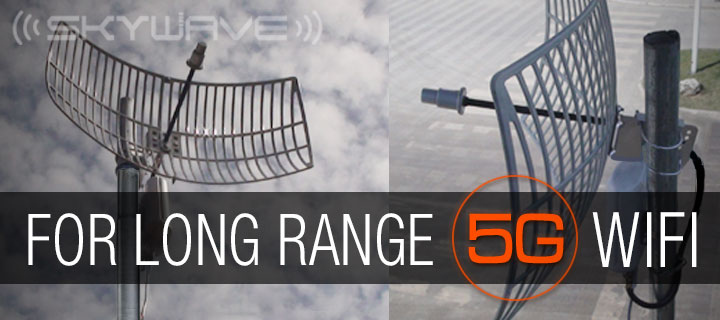

Long Distance

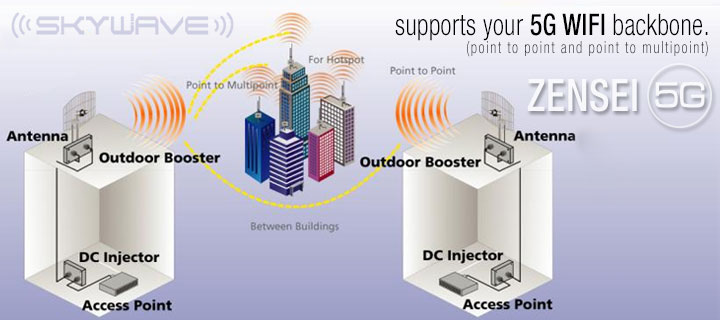

The SkyWave Zensei 5G is made for long distance point-to-point and point-to-multipoint 5Ghz Wifi bridges.

Depending on the access point used, you can span distances up to 40kms.

Choose between 24dbi (5000SPD4) and 27dbi (5000SPD6) versions.

Note: The Zensei 5G does not include LMR240 cables.

SkyWave Zensei Parabolic Grid Antenna

Compatible with Wifi Boosters

Is your Wifi hotspot limited by your router?

Extend your hotspot using the SkyWave Zensei 5G Antenna and our 5Ghz Wifi Booster.

Compatible with Wifi Booster

Compatible with Your Favorite Outdoor AP

Pair with Outdoor AP / Bridge

The Zensei 5G is compatible with Ubiquiti, Microtik, and other outdoor access points and bridges.

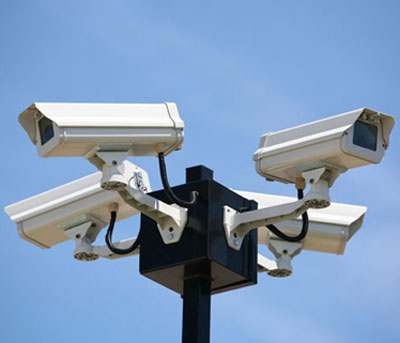

Best for Wireless Audio and Video Streaming

Connect your video surveillance equipment to an outdoor access point that is connected to our SkyWave Zensei 5G Antenna to stream your mission critical audio and video feeds over 5Ghz.

5Ghz is best for streaming live video and audio to avoid interference from 2.4Ghz band, as you can see below.

Better Cellphone Reception

Avoid Interference from 2.4Ghz

Avoid Interference

Stream your videos faster and cut lag times for smoother gaming over 5Ghz by avoiding the overcrowded 2.4Ghz band.

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

Specifications

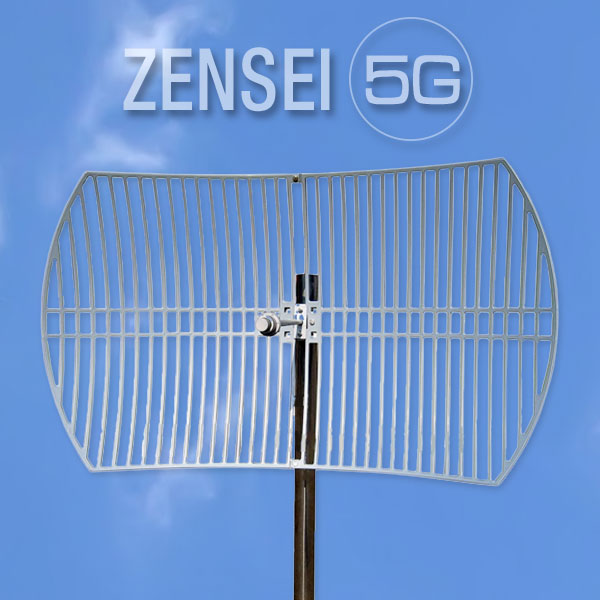

Zensei 5G Parabolic Grid Antenna
Model Number 5800SPD6
Antenna Type Parabolic Grid
Frequency Range 5150 ~ 5800 Mhz
Application 5Ghz Wifi
Gain 27 dbi
Horizontal Beamwidth
Vertical Beamwidth 12°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 600 x 400 mm
Weight 3 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 3,850.00

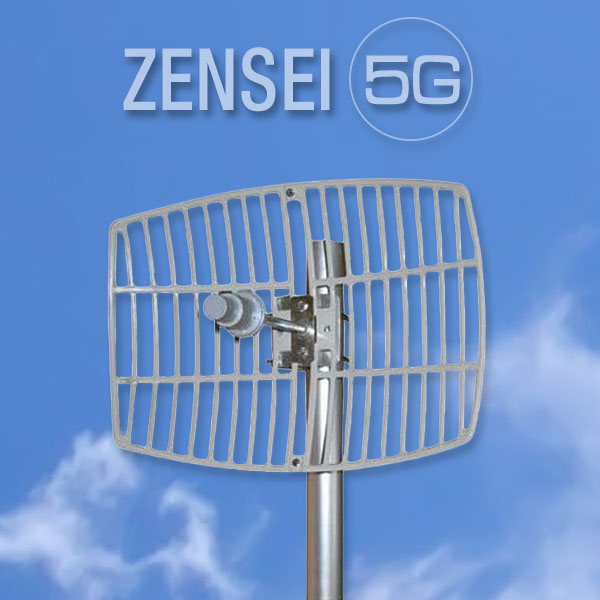

Zensei 5G Parabolic Grid Antenna
Model Number 5800SP4
Antenna Type Parabolic Grid
Frequency Range 5150 ~ 5800 Mhz
Application 5Ghz Wifi
Gain 24 dbi
Horizontal Beamwidth
Vertical Beamwidth 12°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 300 x 400 mm
Weight 1.4 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 3,250.00

Options

The Zensei 5G Parabolic Grid Antenna does not include LMR240 cables, they are sold separately.

LMR240 Cables Converter Delivery
10 Meters: P600.00 SMA to RPSMA-Male Converter (Pigtail): P300.00 LBC Express: P735.00 (5000SPD6)
15 Meters: P875.00 JRS Express: P330.00 (5000SPD6)
20 Meters: P1,150.00 LBC Express: P495.00 (5000SPD4)
30 Meters: P1,750.00 JRS Express: P220.00 (5000SPD4)

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
