Zensei Ultra Parabolic Grid Antenna   P 4,450.00

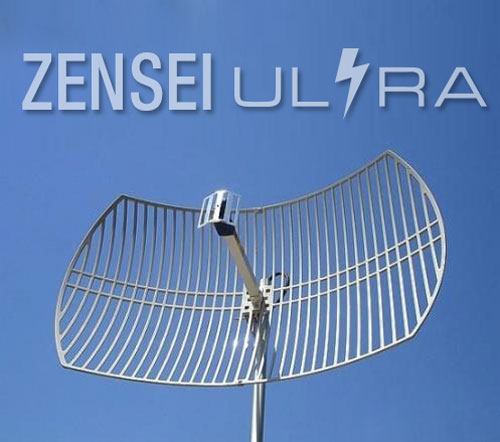

Zensei Ultra Parabolic Grid Antenna

SkyWave Zensei Ultra Parabolic Grid Antennas

Highest Gain

With high 22dbi gain, SkyWave Zensei Ultra Parabolic Grid Antennas ensure you get consistent internet connections all day, all night.

The Zensei Ultra is the only Parabolic Grid in its class that supports true 4G LTE internet with efficient signal transmission (low VSWR).

SkyWave Zensei Ultra Parabolic Grid Antenna

Big Brother

Bigger, Stronger, Farther.

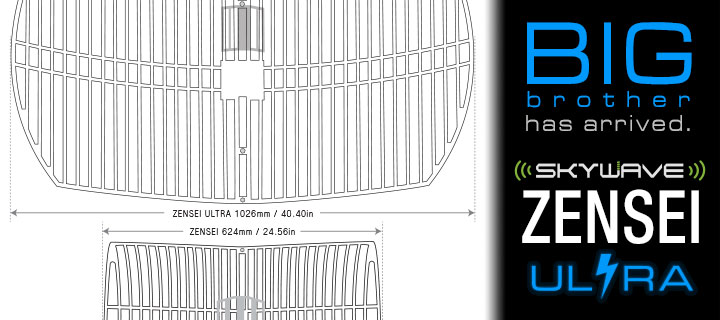

With a surface area of 600 x 1026 mm, the Zensei Ultra has 260% more surface area than the Zensei to provide a stronger signal gain of 22dbi.

More surface area means the Zensei Ultra can reach as far as 28kms with clear line of sight. This is 40% farther distance covered than the Zensei.

Break new barriers with the SkyWave Zensei Ultra!

Big Brother

Conquer Distance

Conquer Distance

Conquer distance with the Skywave Zensei Ultra Parabolic Grid Antennas.

SkyWave Zensei Ultra Parabolic Grid Antennas are made for extra long-distance communications with a maximum range of 26 kilometers (with clear line of sight). No more second guessing, no more worries on your internet connection.

It Takes Two to MIMO

Set the Zensei up for MIMO

You can set the Zensei Ultra Parabolic Grid Antenna for 4G LTE MIIMO to achieve your network's maximum speeds of 42Mbps.

Offset one antenna 90 degrees from the other for proper setup.

Zensei MIMO Configuration

World-Class Cables

World Class LMR240 Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Save P100.00!

Save P100!

Get any of our SkyWave Antenna and Huawei Modem combo and save P100!

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

Specifications

Zensei Ultra Parabolic Grid Antenna
Model Number 2000SPD9UT
Antenna Type Parabolic Grid
Frequency Range 1790 ~ 2170 Mhz
Application 4G LTE / 3G
Gain 22 dbi
Horizontal Beamwidth 12°
Vertical Beamwidth 18°
VSWR < 1.7:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 600 x 1000 mm
Weight 5 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 4,450.00
Zensei Ultra Parabolic Grid Antenna
Model Number 2500SPD9UT
Antenna Type Parabolic Grid
Frequency Range 2400 ~ 2700 Mhz
Application Wimax / Wifi
Gain 24 dbi
Horizontal Beamwidth 12°
Vertical Beamwidth 18°
VSWR < 1.7:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 600 x 1000 mm
Weight 5 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 4,450.00

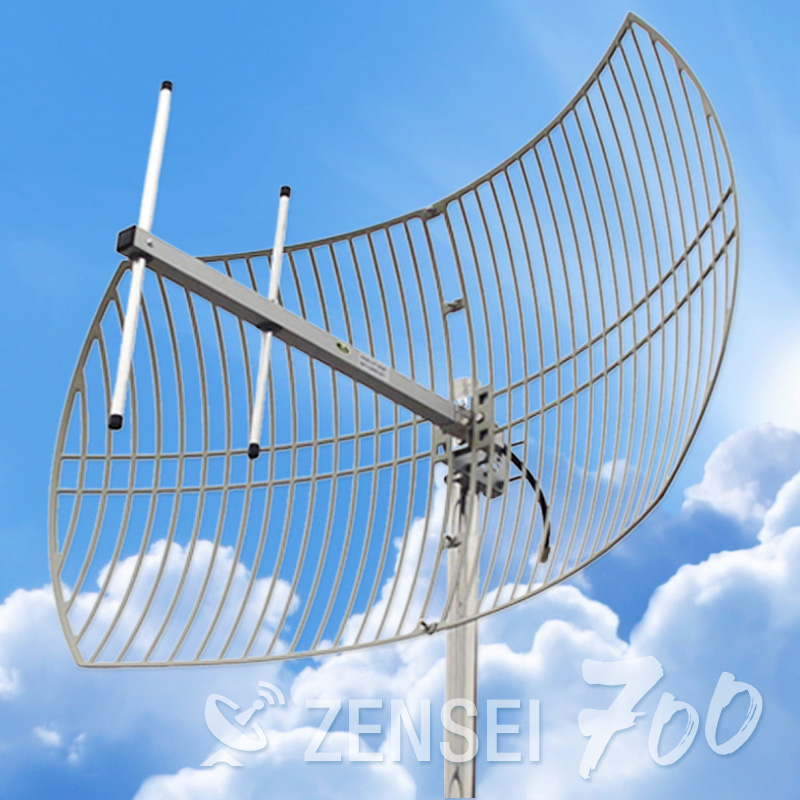

Zensei Ultra Parabolic Grid Antenna for 700Mhz 4G LTE
Model Number 700SPD9UT
Antenna Type Parabolic Grid
Frequency Range 700 ~ 805 Mhz
Application 4G LTE 700Mhz
Gain 16 dbi
Horizontal Beamwidth 16°
Vertical Beamwidth 12°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 600 x 1020 mm
Weight 3.5 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 4,450.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P1,550.00 (1-2 Days)
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P1,500.00 (1-4 Days)
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
