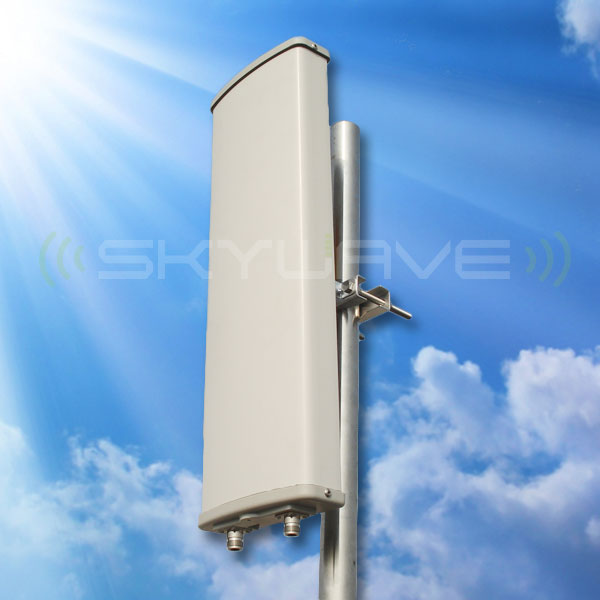

Gemini Ultra MIMO Sector Antenna

Gemini Ultra MIMO Sector Antenna

High Gain MIMO

SkyWave Gemini Ultra MIMO Sector Antennas are high gain MIMO-ready antennas with a maximum range of 10 kilometers. It is suitable for city use and for other high-density areas.

SkyWave Gemini MIMO Panel Antenna

MIMO Ready

Takes Advantage of your 4G LTE MIMO Communications

SkyWave Gemini Ultra MIMO Sector Antennas are 2x2 MIMO ready to take advantage of your network's maximum LTE speeds of 42Mbps!

2 cables from the antenna are ready to connect to your 4G LTE modem device's external antenna ports.

MIMO Ready

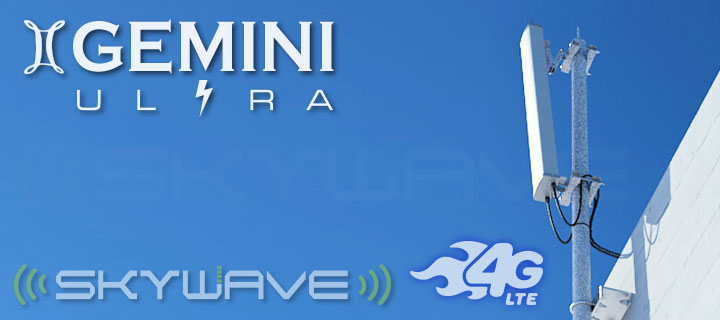

Base Station Class Antenna

MIMO Ready

The SkyWave Ultra Gemini MIMO Sector Antenna is a base station class antenna.

Enjoy the full benefits of base station class MIMO antenna for your 4G LTE in your home or office.

Conquer Distance

Conquer distance with the Skywave Gemini Ultra MIMO Sector Antennas.

SkyWave Gemini MIMO Sector Antennas have a maximum range of 10 kilometers (with clear line of sight). No more second guessing, no more worries on your internet connection.

Conquer Distance

World-Class Cables

World Class LMR240 Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

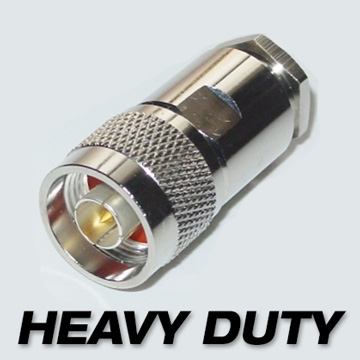

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

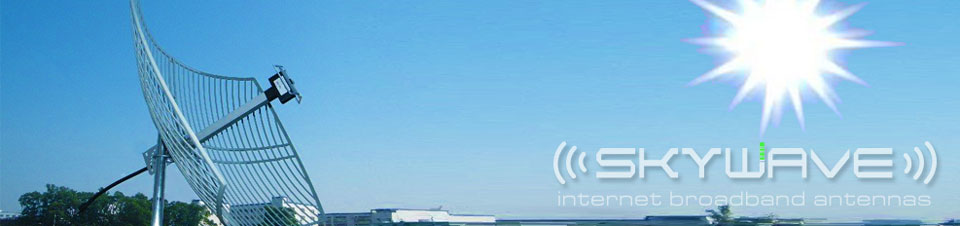

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

The Gemini MIMO Sector Antenna is a base station class antenna that has superior ABS Radome material for extra protection.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

SkyWave Gemini MIMO Sector Antenna SkyWave Gemini MIMO Sector Antenna SkyWave Gemini MIMO Sector Antenna SkyWave Gemini Ultra MIMO Sector Antenna SkyWave Gemini Ultra MIMO Sector Antenna

Specifications

Gemini Ultra MIMO Sector Antenna
Model Number 2000GPD16x2
Antenna Type MIMO Sector (Dual Polarity)
Frequency Range 1790 ~ 2170 Mhz
Application 4G LTE / 3G
Gain 16 dbi
Horizontal Beamwidth 65°
Vertical Beamwidth 15°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 23
Max Power 50 watts
Polarization ±45° (MIMO)
Connector N-Female
Connector to Device SMA-Male
Dimension 500 x 120 mm
Weight 4.5 kg
Material Radome ABS
Directional True
Unit Price P 4,850.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P735.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P650.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
