SkyWave® Yagi Antenna

SkyWave

Questions? 0908-4655440

SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna SkyWave® Yagi Antenna

SkyWave® Yagi Antenna

SkyWave® Yagi Antenna

High Gain, Mid Range

SkyWave Yagi Antennas are high gain antennas with a maximum range of 10 kilometers. With true 14dbi gain, it is suitable for city use and for other high-density areas.

SkyWave Yagi Antennas are very lightweight and easy to setup.

SkyWave Yagi Antenna

Conquer Distance

Conquer distance with the Skywave Yagi Antennas.

SkyWave Yagi Antennas have a maximum range of 10 kilometers (with clear line of sight). No more second guessing, no more worries on your internet connection.

Conquer Distance

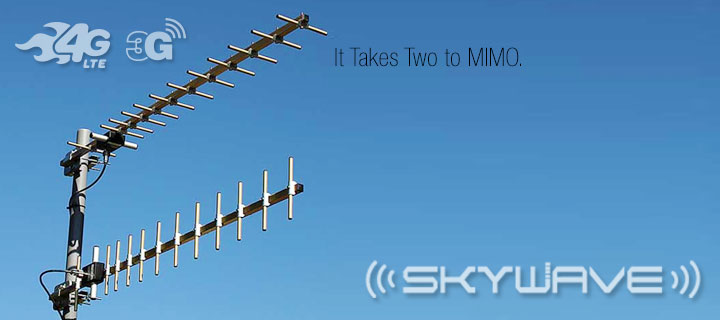

It Takes Two to MIMO

MIMO Configuration

Set the Yagi up for MIMO

You can set the Yagi up for 4G LTE MIIMO to achieve your network's maximum speeds of 42Mbps.

Offset one antenna 90 degrees from the other for proper setup.

Antenna is by default in vertical polarity position and can be adjusted for horizontal polarity position.

World-Class Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

World Class LMR240 Cables

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

Specifications

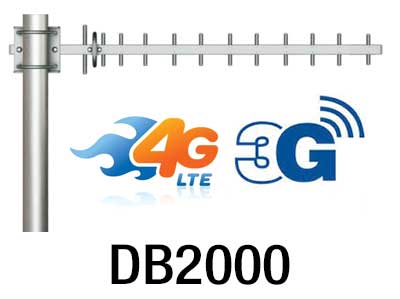

SkyWave® Yagi Antenna
Model Number DB2000
Antenna Type Yagi
Frequency Range 1790 ~ 2170 Mhz
Application 4G LTE / 3G
Gain 14 dbi
Horizontal Beamwidth 48°
Vertical Beamwidth 45°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 610 mm
Weight 0.4 kg
Material Aluminum Alloy
Directional True
Unit Price P 1,995.00

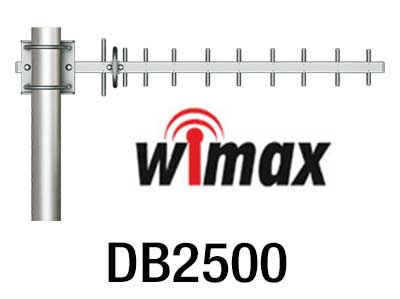

SkyWave® Yagi Antenna
Model Number DB2500
Antenna Type Yagi
Frequency Range 2400 ~ 2700 Mhz
Application Wimax
Gain 14 dbi
Horizontal Beamwidth 72°
Vertical Beamwidth 52°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 530 mm
Weight 0.4 kg
Material Aluminum Alloy
Directional True
Unit Price P 1,995.00

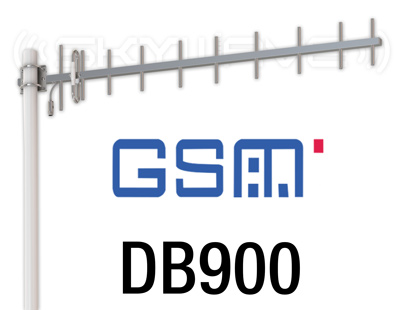

SkyWave® Yagi Antenna
Model Number DB900
Antenna Type Yagi
Frequency Range 890 ~ 960 Mhz
Application GSM900
Gain 14 dbi
Horizontal Beamwidth 34°
Vertical Beamwidth 30°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 1090 mm
Weight 0.55 kg
Material Aluminum Alloy
Directional True
Unit Price P 2,795.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P350.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P250.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
