Zensei Parabolic Grid Antenna

SkyWave

Questions? 0908-4655440

Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna Zensei Parabolic Grid Antenna

Zensei Parabolic Grid Antenna

SkyWave Zensei Parabolic Grid Antennas

High Gain

With true 18dbi (2000SPD6) and 20dbi (2500SPD6) gain, SkyWave Zensei Parabolic Grid Antennas ensure you get consistent internet connections all day, all night.

The Zensei is the only Parabolic Grid in its class that supports true 4G LTE for all networks - Smart, Globe, PLDT - with high signal efficiency.

SkyWave Zensei Parabolic Grid Antenna

Conquer Distance

Conquer distance with the Skywave Zensei Parabolic Grid Antennas.

SkyWave Zensei Parabolic Grid Antennas are made for long-distance communications with a maximum range of 20 kilometers (with clear line of sight). No more second guessing, no more worries on your internet connection.

Conquer Distance

It Takes Two to MIMO

Zensei MIMO Configuration

Set the Zensei up for MIMO

You can set the Zensei Parabolic Grid Antenna for 4G LTE MIIMO to achieve your network's maximum speeds of 42Mbps.

Offset one antenna 90 degrees from the other for proper setup.

WiFi Extender

Extend Your WiFi Coverage

Yes the Zensei Parabolic Grid for Wimax/Wifi (2500SPD6) can also be used to extend your WiFi coverage.

If you have a 2.4Ghz WiFi router with at least one antenna port, just connect the Zensei (2500SPD6) to exend your WiFi coverage.

Some routers will need WIFI booster to provide sufficient power to the antenna.

MIMO WiFi Extender

World-Class Cables

World Class LMR240 Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Save P100.00!

Save P100!

Get any of our SkyWave Antenna and Huawei Modem combo and save P100!

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

FAQS

Are the Zensei and Zensei Ultra Parabolic Grid Antennas compatible with my Huawei B593 modem?

Yes.

Can I use the Zensei or Zensei Ultra Parabolic Grid with my PLDT Ultera CPE?

No. PLDT Ultera CPEs use different base frequency.

For PLDT Ultera use our Zensei Parabolic Grid for Ultera Antenna.

Can I use the Zensei Parabolic Grid with Globe's new LTE-TDD using GreenPacket OD235 CPE?

Yes Globe has new LTE frequency LTE-TDD 2500-2600Mhz.

You can use Zensei Parabolic Grid (2500SPD6) with 2400-2700Mhz frequency.

If I upgrade the default cable to 20m, do I get 10m and 20m cables?

No. Upgrade means we will replace the default 10m cable with the cable of your choice. You will only receive 1 cable.

Gallery

SkyWave Zensei Series Antennas - Conquer Distances

Specifications

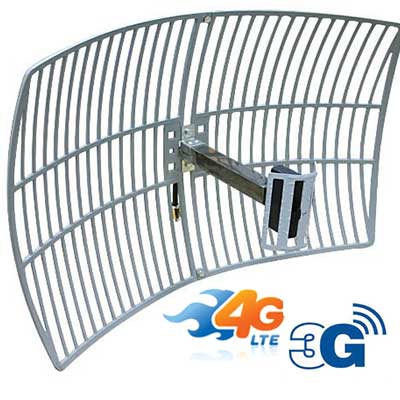

Zensei Parabolic Grid Antenna
Model Number 2000SPD6
Antenna Type Parabolic Grid
Frequency Range 1790 ~ 2170 Mhz
Application 4G LTE / 3G / GSM 1800
Gain 18 dbi
Horizontal Beamwidth 16°
Vertical Beamwidth 12°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 400 x 600 mm
Weight 3.5 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 3,450.00

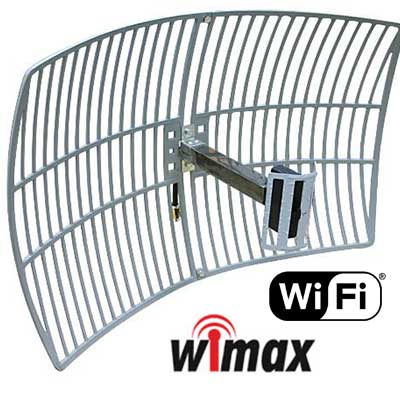

Zensei Parabolic Grid Antenna
Model Number 2500SPD6
Antenna Type Parabolic Grid
Frequency Range 2300 ~ 2700 Mhz
Application Wimax / Wifi
Gain 20 dbi
Horizontal Beamwidth 16°
Vertical Beamwidth 12°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 400 x 600 mm
Weight 3.5 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 3,450.00

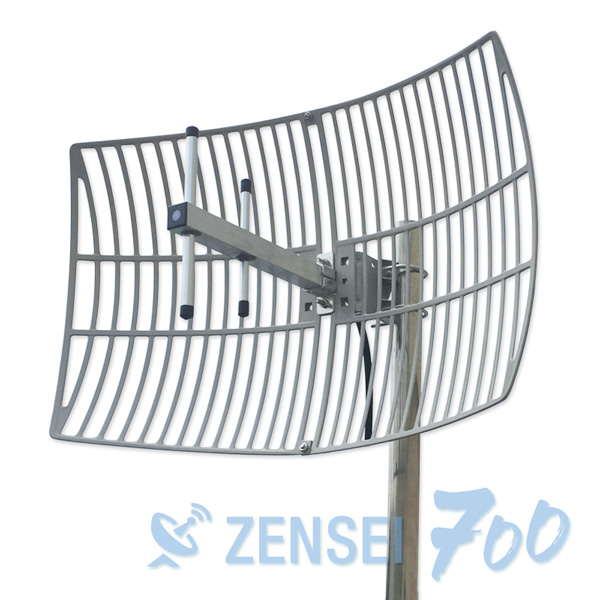

Zensei Parabolic Grid Antenna for 700Mhz 4G LTE
Model Number 700SPD6
Antenna Type Parabolic Grid
Frequency Range 700 ~ 805 Mhz
Application 4G LTE 700Mhz
Gain 12 dbi
Horizontal Beamwidth 16°
Vertical Beamwidth 12°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization Vertical
Connector N-Female
Connector to Device SMA-Male
Dimension 400 x 600 mm
Weight 2.7 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 3,450.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P735.00
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P650.00
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
