Zensei Ultra MIMO Parabolic Grid Antenna

SkyWave

Questions? 0908-4655440

Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna Zensei Ultra MIMO Parabolic Grid Antenna
Quick Payment Options
Zensei Ultra MIMO Parabolic Grid Antenna   P 7,450.00

Zensei Ultra MIMO Parabolic Grid Antenna

SkyWave Zensei Ultra Parabolic Grid Antennas

Highest Gain MIMO Antenna

The Zensei Ultra MIMO Parabolic Grid is the most advanced 4G LTE dual polarity antenna.

With 2x24dbi gain, only one antenna is required to get full 4G LTE speeds.

SkyWave Zensei Series Antennas ensure you get consistent internet connections all day, all night

SkyWave Zensei Ultra MIMO Parabolic Grid Antenna

Advanced MIMO Technology

Dual Polarity Has Never Been Easier

Derived from advanced satellite technology, the Zensei Ultra MIMO Parabolic Grid Antenna offers full 4G LTE speeds.

No need to setup two antennas. Only one antenna is sufficient. Each antenna is bundled with 2x 10m LMR240 Cables.

With the Zensei Ultra Parabolic Grid Antenna it only takes one to MIMO.

Advanced MIMO Technology

Conquer Distance

Conquer Distance

Conquer distance with the Skywave Zensei Ultra MIMO Parabolic Grid Antenna.

SkyWave Zensei Ultra Series Parabolic Grid Antennas are made for extra long-distance communications with a maximum range of 26 kilometers (with clear line of sight). No more second guessing, no more worries on your internet connection.

Maximum 4G LTE Speeds

Get full 4G LTE speeds with just one antenna.

Advancement in antenna feedhorn design allows one antenna to receive dual polarity waveform.

Maximum 4G LTE Speeds

World-Class Cables

World Class LMR240 Cables

All SkyWave Antennas are bundled with superior LMR240 cables made for data communications.

LMR240 cables are shielded, high quality, low-loss cables made for data communications.

Each LMR240 cable is terminated with heavy-duty N-type connector for better outdoor performance.

Heavy-Duty Connectors

Don't compromise for anything less.

Made for the Outdoors

Tough and Weatherproof

Tough and weatherproof, all SkyWave Antennas are made for long-term outdoor use.

Compatible with Your Device

Compatible with your Device

All SkyWave Antennas are compatible with your modem device from Huawei, ZTE, and GreenPacket that has an external antenna port.

External antenna ports supported are: TS9, SMA, and RPSMA-Female.

Our cables are SMA-Male by default. TS9 and RPSMA-Male converters are available.

TS9 Connector
SMA Connector
RPSMA Connector
TS9 Connector SMA Connector RPSMA-Male Connector

Save P100.00!

Save P100!

Get any of our SkyWave Antenna and Huawei Modem combo and save P100!

Freebies

Just like our facebook page to avail of 10 Cable Clips for cable management for FREE with your purchase of SkyWave Antennas.

Click on the photo to proceed to our facebook page (and like it!).

Frebies

Gallery

Specifications

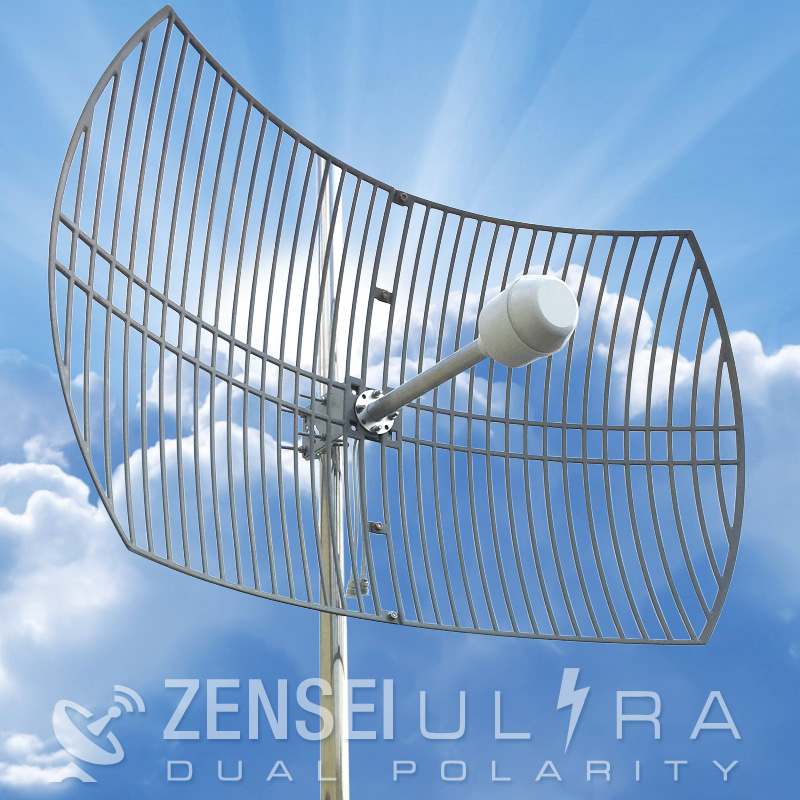

Zensei Ultra MIMO Parabolic Grid Antenna
Model Number 2000SPD9UTX
Antenna Type Parabolic Grid
Frequency Range 1790 ~ 2600 Mhz
Application 4G LTE / 3G
Gain 24 dbi
Horizontal Beamwidth 12°
Vertical Beamwidth 18°
VSWR < 1.5:1
Impedance 50 Ω
Front to Back Ratio 16
Max Power 100 watts
Polarization ±90° (MIMO)
Connector 2x N-Female
Connector to Device SMA-Male
Dimension 600 x 1100 mm
Weight 4.5 kg
Material Power-coated Aluminum Alloy
Directional True
Unit Price P 7,450.00

Options

Cable Upgrade Converter Delivery
LMR240 15 Meters: P275.00 SMA to TS9 Converter (Straight): P275.00 LBC Express: P1,550.00 (1-2 Days)
LMR240 20 Meters: P550.00 SMA to TS9 Converter (Pigtail): P300.00 JRS Express: P1,500.00 (1-4 Days)
LMR240 25 Meters: P875.00 SMA to RPSMA-Male Converter (Straight): P250.00
LMR240 30 Meters: P1,150.00 SMA to N-Male Converter (Straight): P300.00
LMR400 10 Meters (N-M/N-M): P850.00 N-Female to SMA-Male Converter (Pigtail): P400.00
LMR400 20 Meters (N-M/N-M): P2,050.00 N-Female to TS9 Converter (Pigtail): P400.00

* Prices stated above are per piece.

* SkyWave Gemini MIMO Panel Antennas require 2x LMR240 cables.
